Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

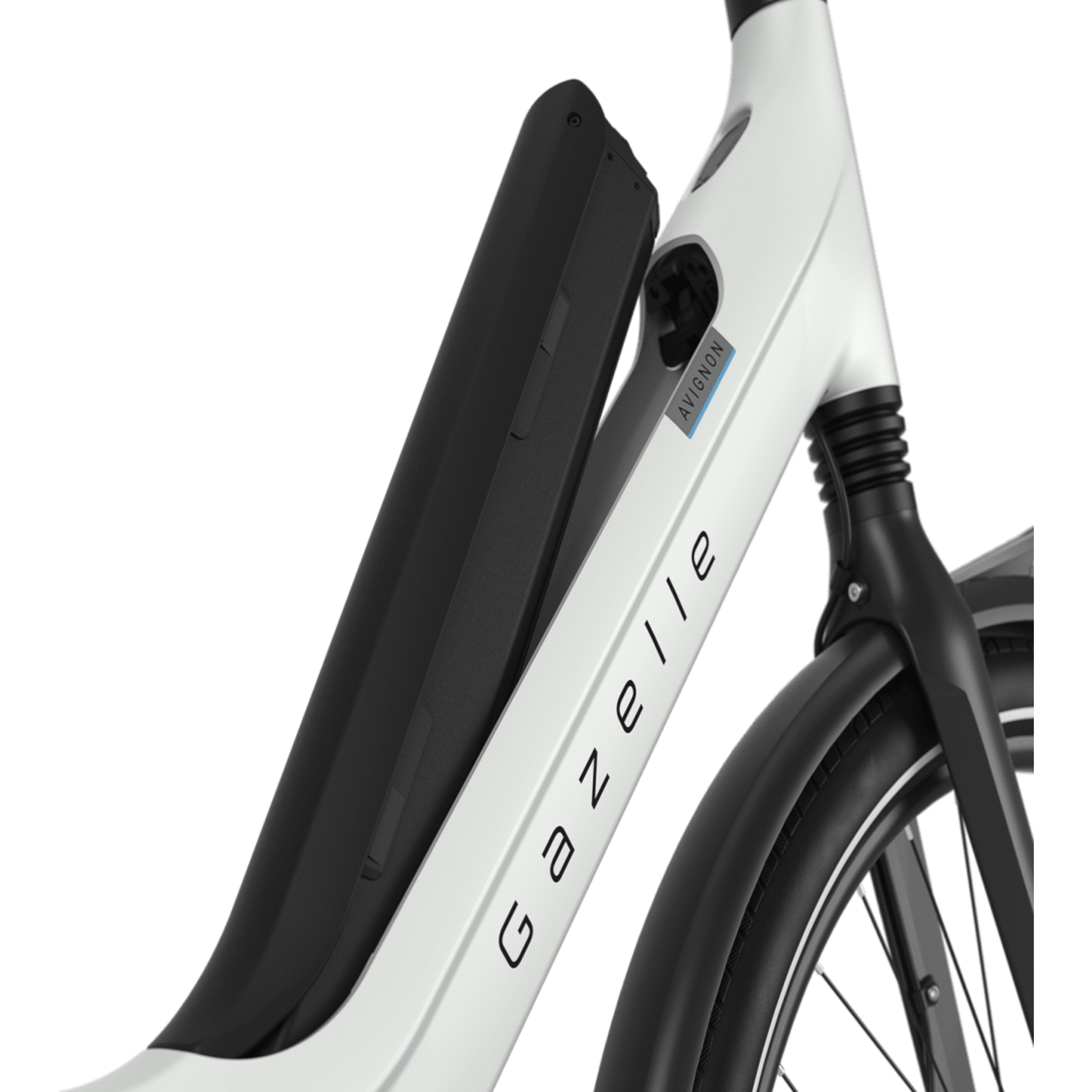

Efficient, integrated power source

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 625 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.

Discover new places with Bosch's quiet yet powerful motor

The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.

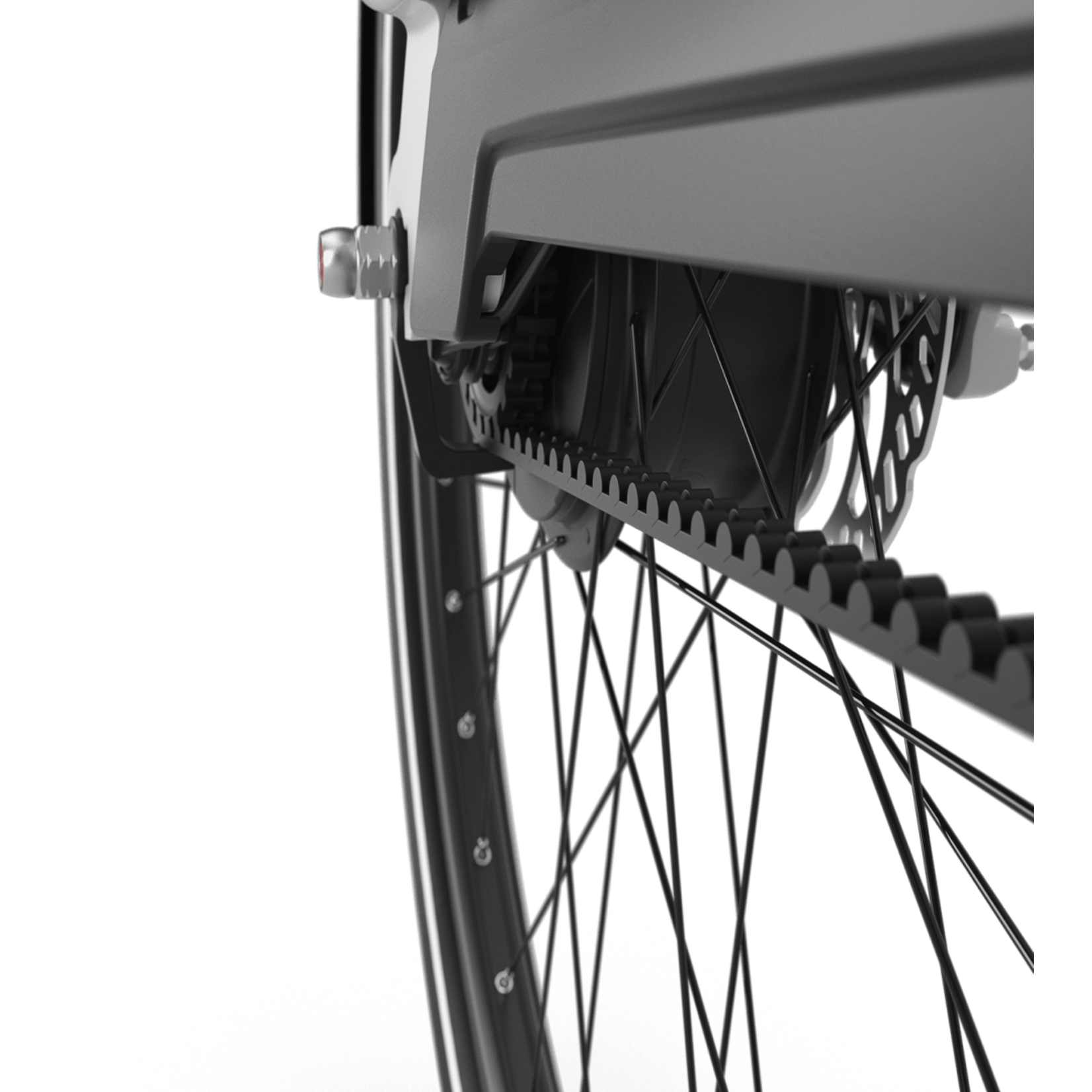

Always in the right gear

Enviolo's robust, stepless shifting gear hub lets you switch between gears without going through the intermediate gears — whether you are pedaling or stationary. The drive system uses a Gates CDX belt. It quietly does its job and is low maintenance. Nice and convenient!

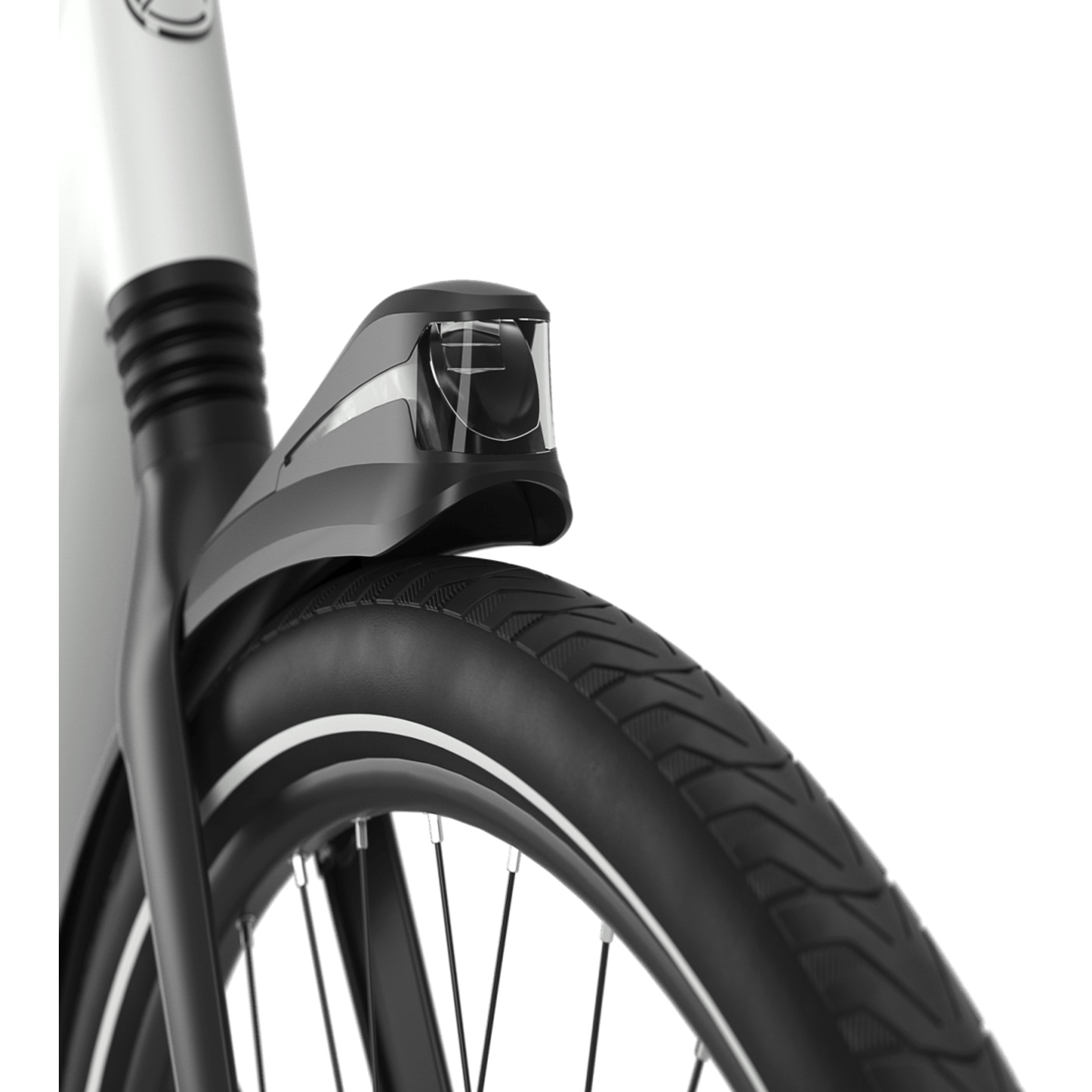

Integrated LED lighting

The daytime running lights on the Avignon C380 do their job, day and night. The powerful 70 lux front light is integrated into the mudguard. And with cut-outs in the carrier for the rear light, you are easily visible not only from behind but also from the sides.

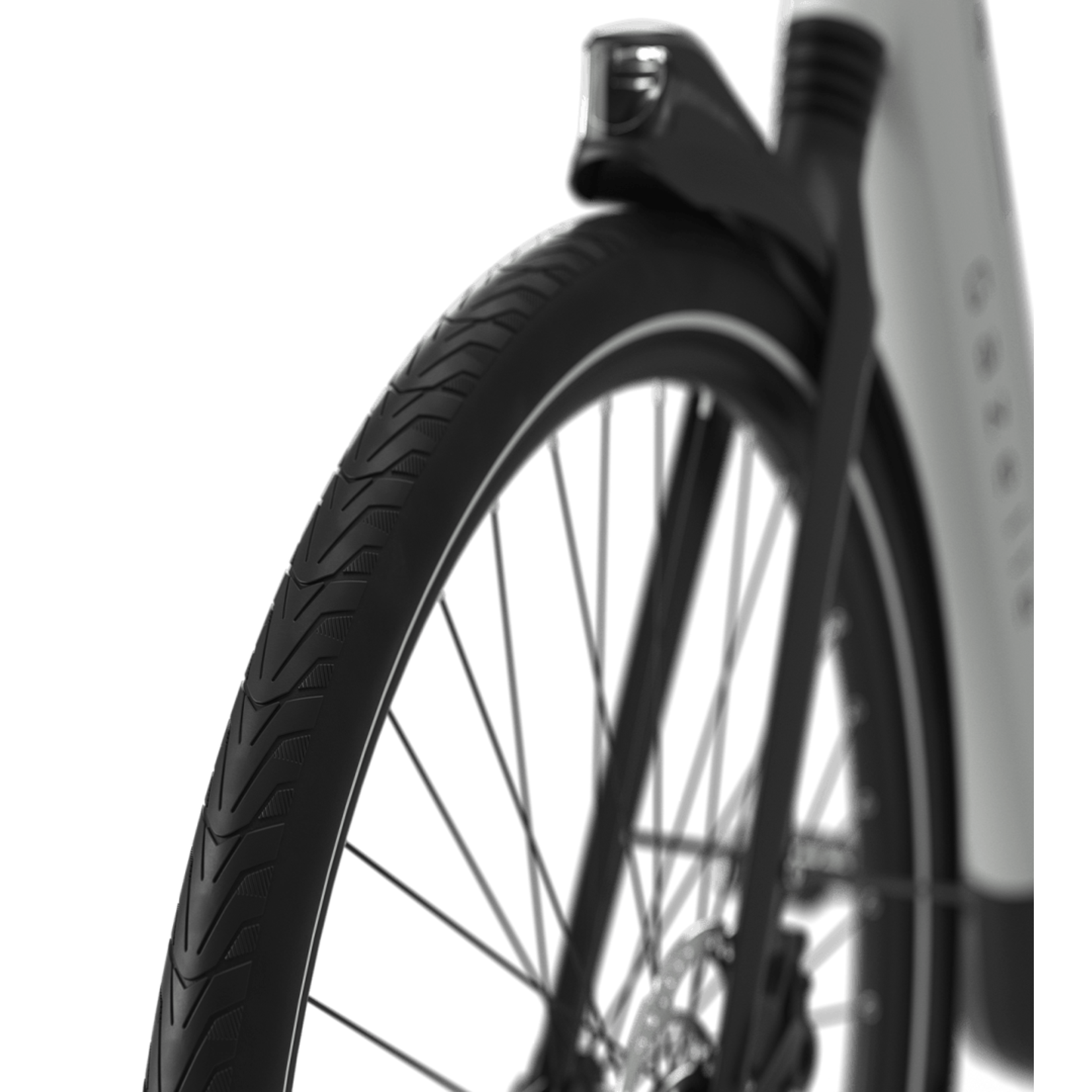

Always in control

The Avignon C380 has extra-wide tires for enhanced stability and comfort. The Magura disc brakes guarantee excellent braking power that is easy to control in all conditions. With the large brake levers, that goes without saying; you are always in control.

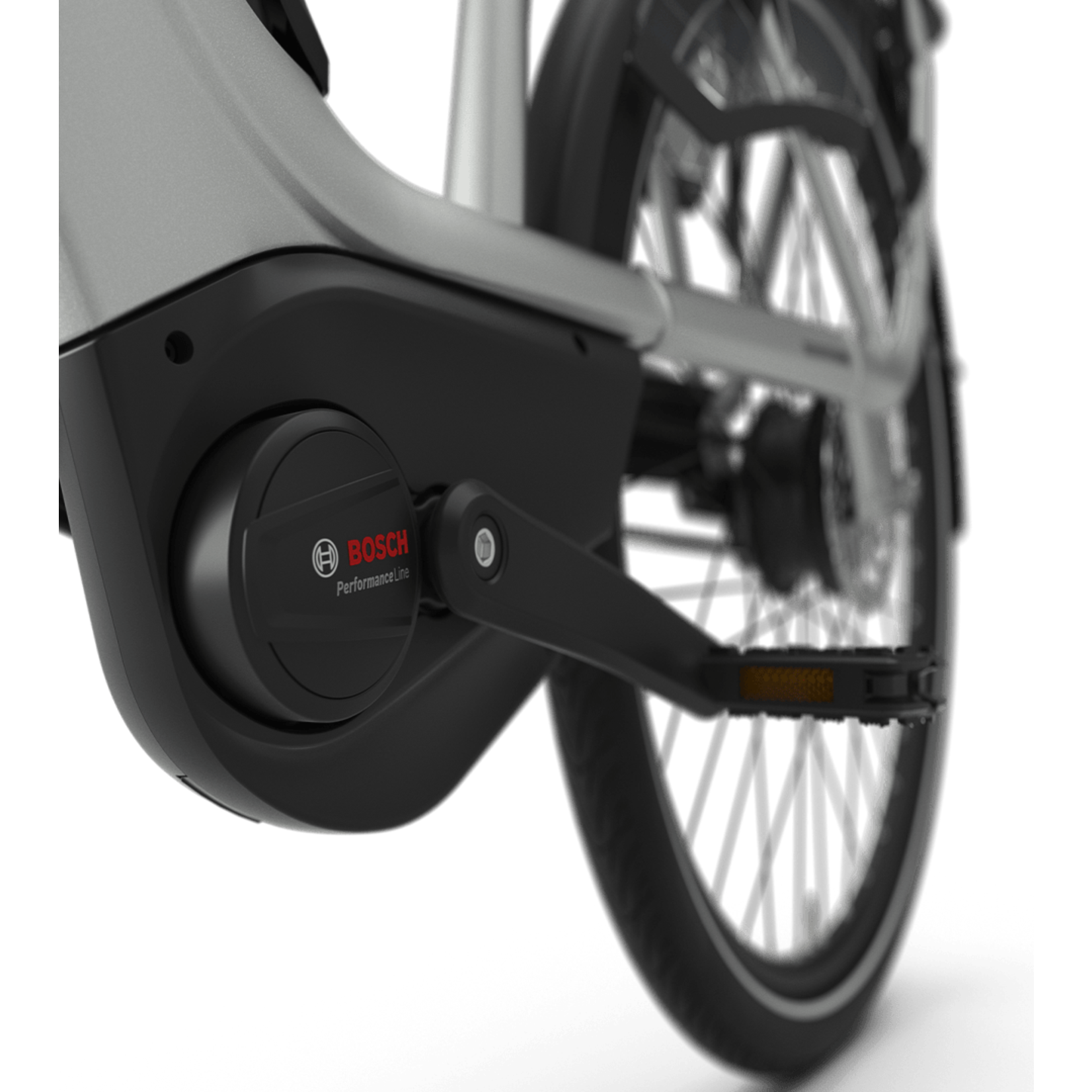

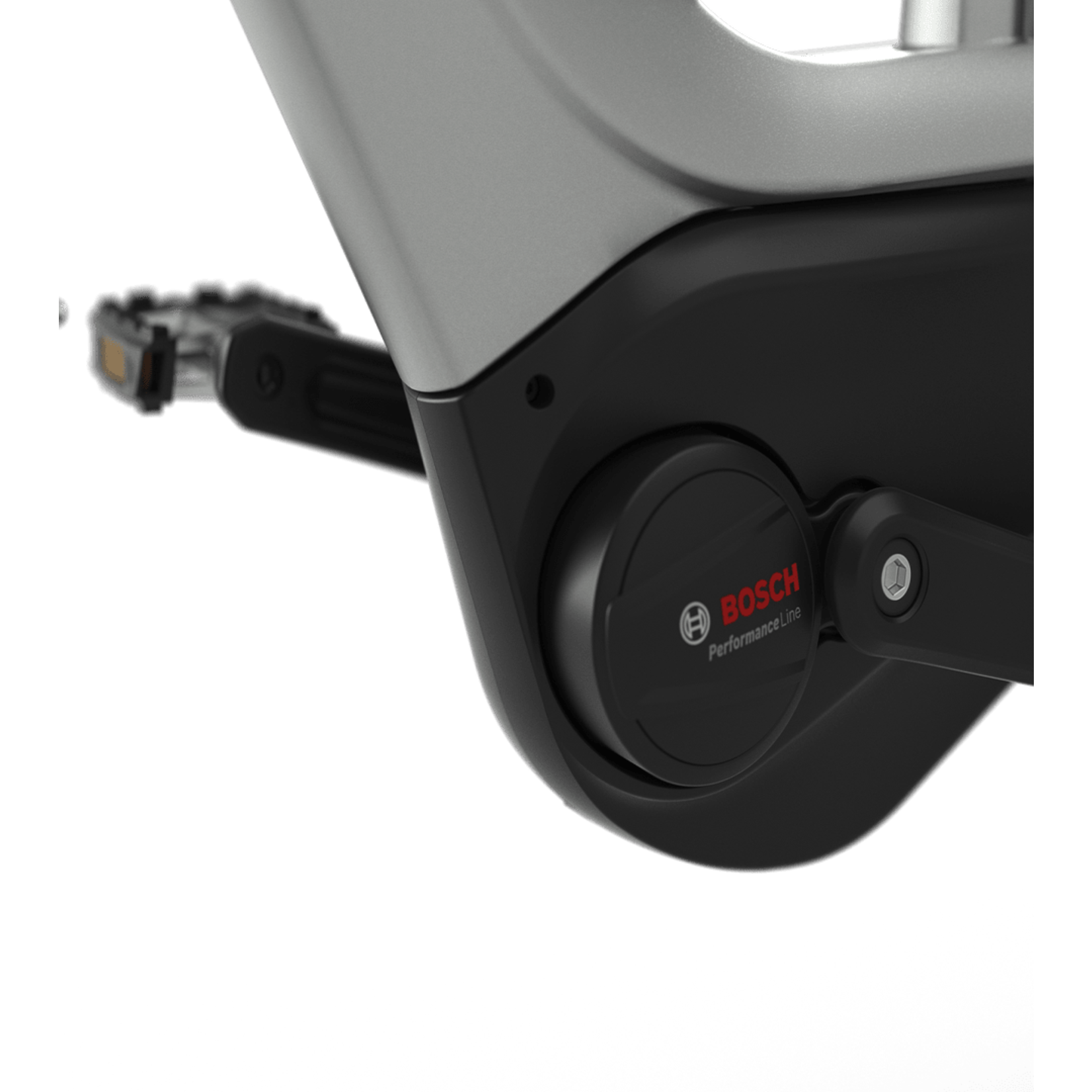

Powerful, mid-drive motor

The Avignon C380 features a powerful Bosch Performance Line mid-drive motor. Neither headwinds nor hills are a problem with this bike. And for longer rides, this Avignon boasts a battery capacity of 625 Wh to extend your range.

Specifications

Highlights

Color
Pebble grey matte, teal grey matte
Fork suspension
Mono Integrated
System Model
Performance Line
Motor
Bosch Smart System Performance Line

General

Bike weight description
Excl. battery
Weight (kg)
28.6 kgs
Weight
28.6 excl. battery
Color
Pebble grey matte, teal grey matte
Front Light Integrated
Yes
Bike Max. Total Weight (kg)
130
Sitting Position
Upright

Frame & Fork

Frame

Frame descriptionStable aluminium frame with 68.5° head tube angle and 69.5° saddle tube angle. Cables are nicely concealed through the unique cable integration system. Battery integrated in the frame for large capacity (625 Wh)
Frame materialAluminum
Cockpit Cable IntegrationYes
Frame shapeLow-Step
Frame Size CM46, 53, 57
Fork

Fork descriptionAluminium, binnenbalhoofd vering, lichtgewicht
Fork MaterialAluminum
Fork suspensionMono Integrated

Wheels & Tires

Wheels

Front wheel46
Rear wheel22
Front rimRyde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
Rear rimRyde ZAC 25, double-walled aluminium for extra strong and efficient cycling performance
Front hubShimano
Rear hubEnviolo Trekking Manual, continuously variable gears
WheelSize Front28"
Tires

Wheels Tire Front Etrto55-622
Front tireScalato Mondano
Rear tireScalato Mondano
Wheels Tire Front DescriptionScalato Mondano

Transmission & Brakes

Gears

Brand shiftersEnviolo
Front chainwheel46
Gear TypeHub
Number of gearsStepless
Transmission

DrivetrainBelt
Brakes

Front Brake TypeDisc brake
Brake sytem codeSE
Front Brake BrandMagura
Primary Rear Brake ModelMT-C4
Front brakeMagura MT-C4, 180 mm
Rear brakeMagura MT-C4, 160 mm
Rear Brake LeverMaguraCT4

Handlebar & Seat

Handlebar

HandlebarGazelle Aero leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
Stem adjustableYes
Cockpit Handlebar Grip BrandGazelle
Seat

SaddleSelle Royal Essenza Plus gel

Lighting

Front light

Front lightGazelle Fendervision
Front Light Energy SourceBattery
Front Light Lux70
Rear light

Rear Light Energy SourceBattery
Rear lightSpanninga Commuter Glow

E-bike technique

Motor

System ModelPerformance Line
MotorBosch Smart System Performance Line
Ebike System BrandBosch Smart System
Ebike Engine PositionMid
Ebike Max Speed mph20
Engine Max Torque (Nm)75
Battery

ChargerBosch
Ebike Battery Charger Description4 Ah
Battery PositionIntergrated in the frame
Display

DisplayBosch Intuvia 100
Display RemoveableYes
Ebike Walk AssistYes
Display TypeLCD

Service

Garantie

Frame warranty10 year's warranty
Fork warranty5 year's warranty
Paint warranty5 year's warranty
Other parts warranty2 year's warranty
Battery warranty2 year's warranty
Motor warranty2 year's warranty
Display warranty2 year's warranty

Other

Lock

LockAbus
Lock brandAbus
ART classificationART**
Other

KickstandUrsus Mooi
Coat protectorYes
Luggage rack

Rear carrier descriptionAluminum MIK HD system carrier
Carrier MIK ProfileYes
Rear carrier max load (kg)27
Rear carrierYes
