Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Modern and efficient energy source

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. The Medeo T9 City has a 400 Wh battery.

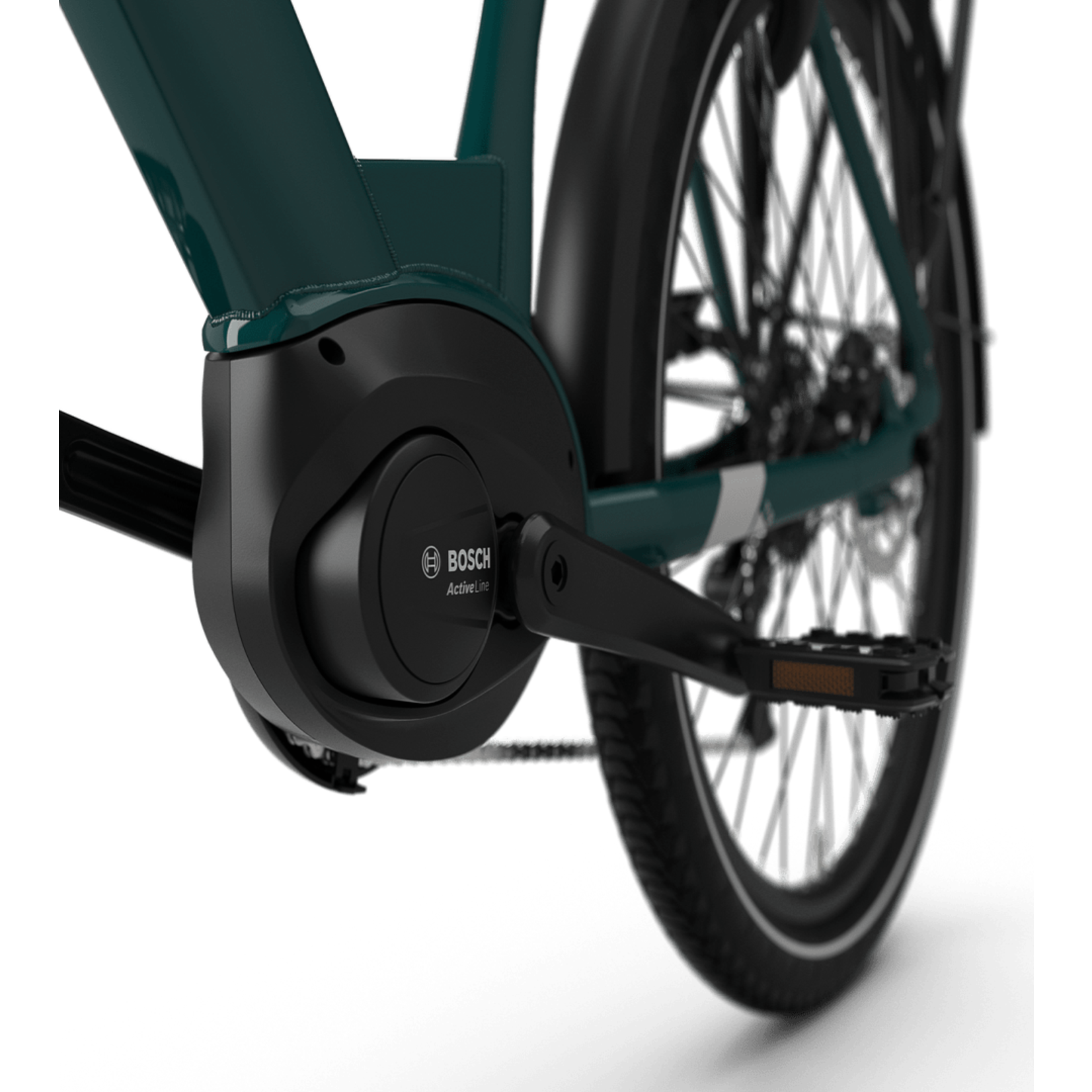

The wind is always at your back with a Bosch Active Line Plus motor

The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.

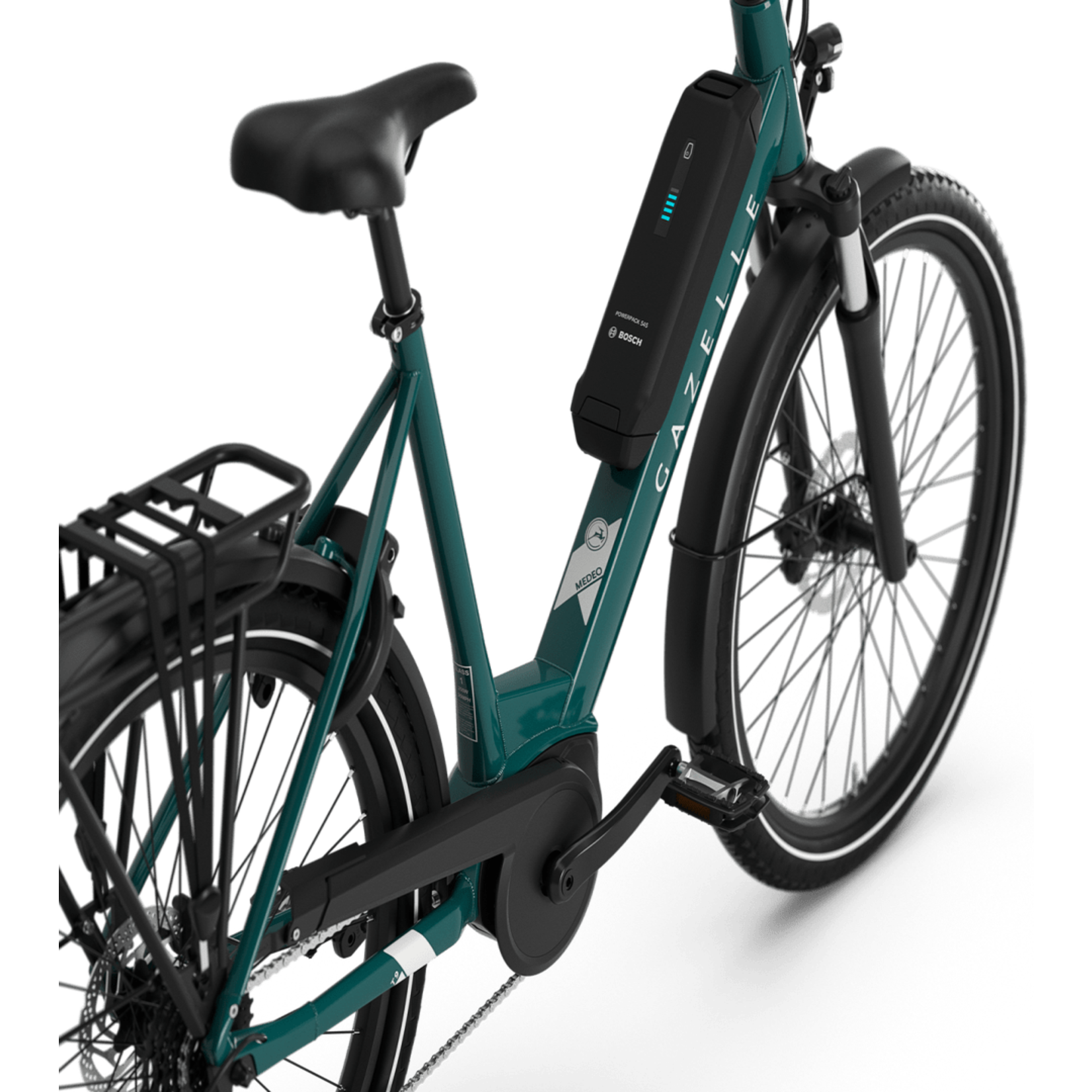

Easy on, easy off

The Medeo T9 City's updated, reengineered frame removes the secondary supporting tube to make this bike a true low-step.The result is a sporty yet accessible ebike. The new, slightly beefier frame offers improved stiffness and stability, while lowering the center of gravity for a balanced ride feel. The addition of a rear hub lock adds security and peace of mind for the rider.

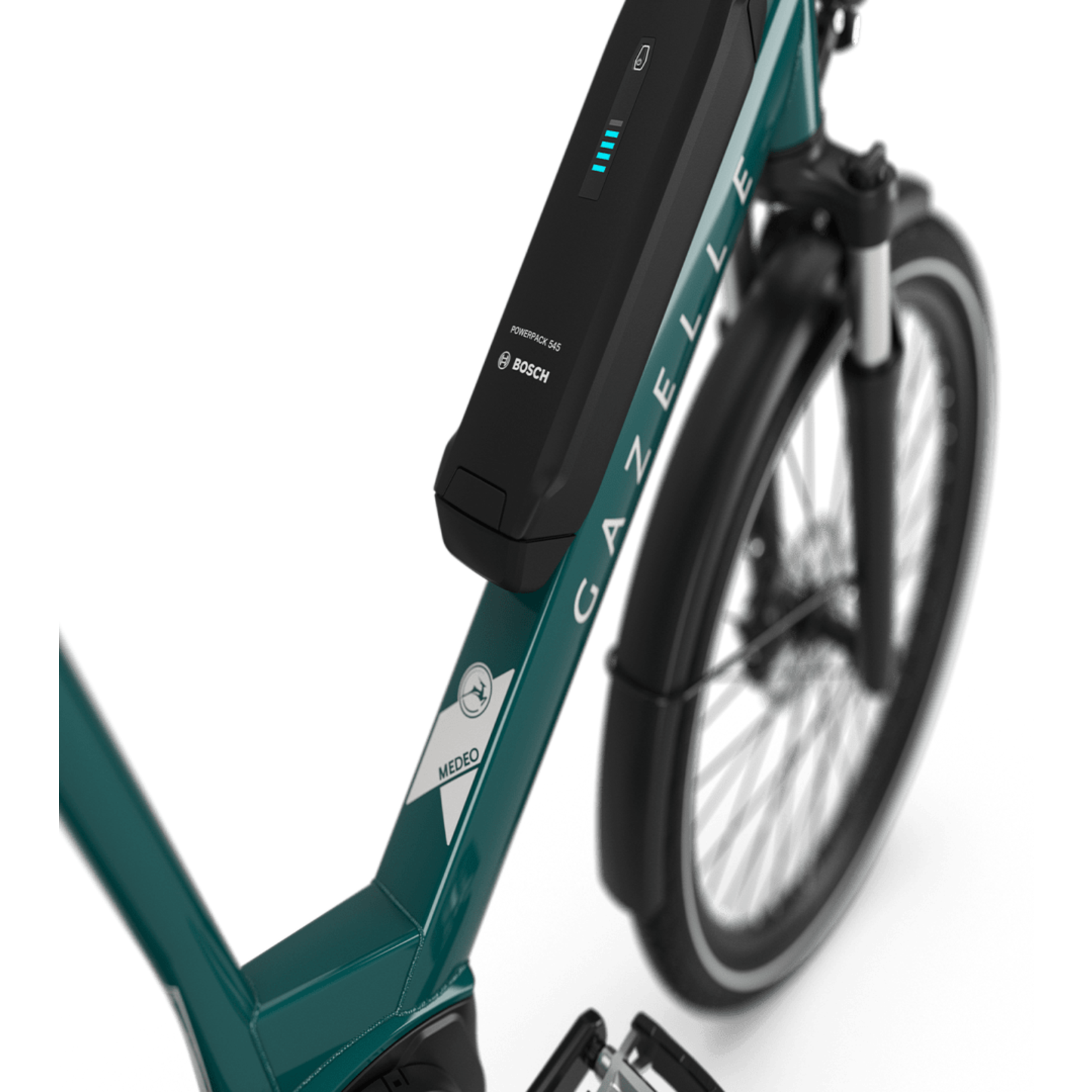

Expand your possibilities

With the new edition Medeo T9 City, we have moved the 400 Wh battery from the rear rack to the down tube. The on-tube battery placement frees up space on the rear rack, allowing us to spec an MIK rack, offering the option to carry more cargo for big trips and big shops alike.

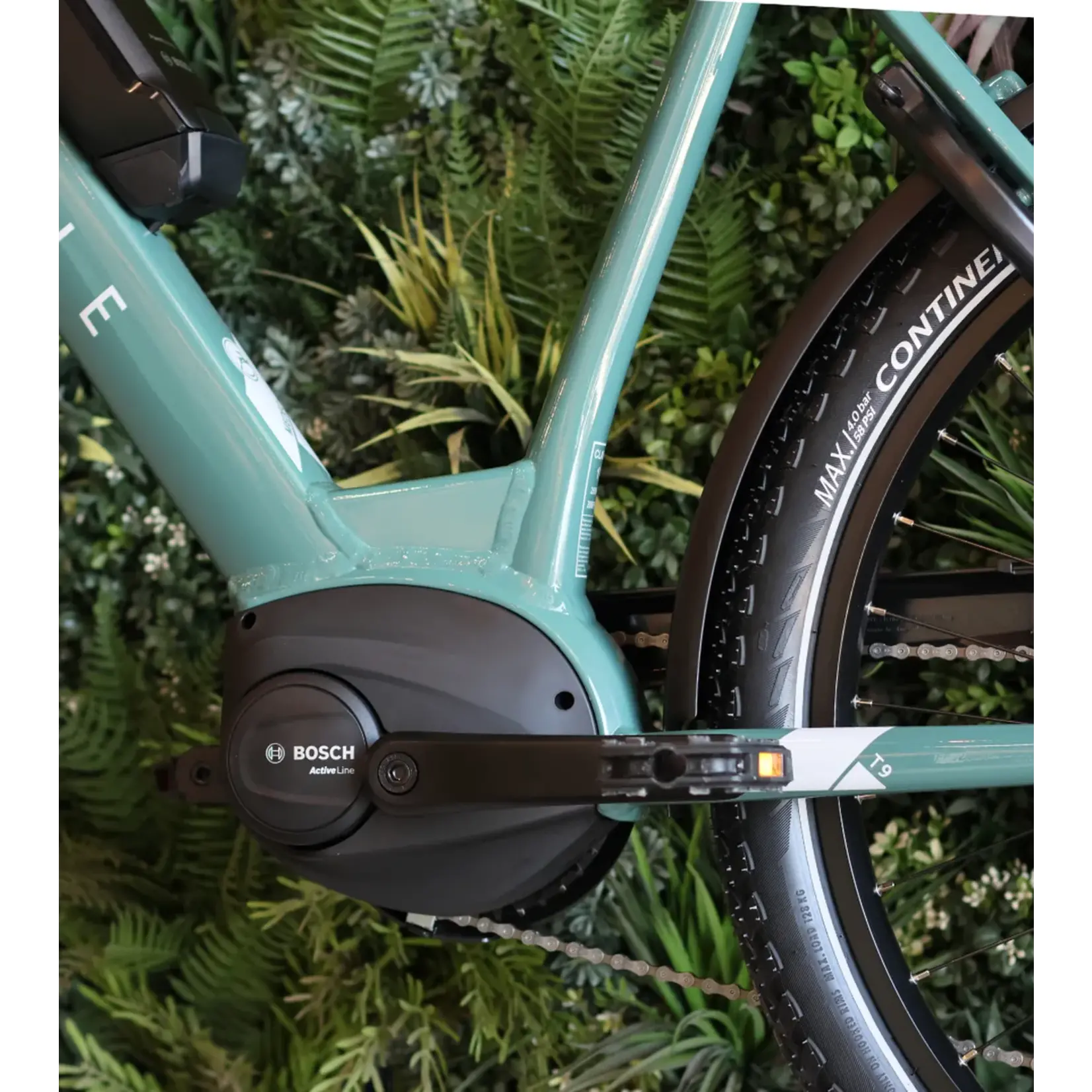

Smooth and silent support

Bosch’s updated Smart System Active Line motor offers smooth and silent support with up to 40 Nm of torque for the Medeo T9 City, and expanded functionality to enhance the ride experience. This includes the popular adaptive Auto Mode, which delivers a customized, optimized ride based on unique rider inputs measured by the ebike system in real time.
Hit the road with confidence

We developed the Medeo T9 City with accessibility in mind. To enhance this even further with this next generation, we have specced smaller wheels (27.5") and our widest tires to date, 62mm Continental Contact Plus tires. In addition, we have added a new XS frame size offer smaller riders (4'9 - 5'2) a chance to experience the joy of Gazelle.
Specifications

Highlights

Color
Caramel khaki gloss, thyme green gloss
Fork suspension
Telescope, spiral spring
System Model
Active Line
Motor
Bosch Smart System Active Line

General

Bike weight description
Excl. battery
Weight (kg)
22.9 kgs
Weight
22.9 excl. battery
Color
Caramel khaki gloss, thyme green gloss
Bike Max. Total Weight (kg)
130
Sitting Position
Sportive

Frame & Fork

Frame

Frame descriptionStable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
Frame materialAluminum
Cockpit Cable IntegrationYes
Frame shapeLow-Step
Frame Size CM40, 45, 50, 55
Fork

ForkSR Suntour MOBIE A32 DS
Fork MaterialAluminum
Fork suspensionTelescope, spiral spring
Fork lockoutYes

Wheels & Tires

Wheels

Front rimRyde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
Rear rimRyde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
Front hubShimano
WheelSize Front27.5"
Tires

Wheels Tire Front Etrto62-584
Front tireContinental Contact Plus
Rear tireContinental Contact Plus

Transmission & Brakes

Gears

Brand shiftersShimano
Cassette Range11-36
Gear TypeDerailleur
Number of gears9
Transmission

Rear derailleurShimano Alivio M3100
DrivetrainChain
Brakes

Front Brake TypeHydraulic disc brake
Brake sytem codeS9
Front Brake BrandShimano
Primary Rear Brake ModelBR-MT200
Front brakeShimano BR-MT200, 180 mm
Rear brakeShimano BR-MT200, 160 mm
Rear Brake LeverBLMT200

Handlebar & Seat

Handlebar

HandlebarHerrmans DD36, plastic wear-resistant handlebar grips for a firm grasp
Stem adjustableYes
Cockpit Handlebar Grip BrandHerrmans
Seat

SaddleDDK

Lighting

Front light

Front lightAXA Compactline 35
Front Light Energy SourceBattery
Front Light Lux35
Rear light

Rear Light Energy SourceBattery
Rear lightAXA Blueline

E-bike technique

Motor

System ModelActive Line
MotorBosch Smart System Active Line
Ebike System BrandBosch Smart System
Ebike Engine PositionMid
Ebike Max Speed kmh25
Ebike Max Speed mph20
Engine Max Torque (Nm)40
Battery

ChargerBosch Compact charger,
Ebike Battery Charger Description2 Ah
Battery PositionOn the frame
Display

DisplayBosch Purion 200
Ebike Walk AssistYes
Display TypeLED

Service

Garantie

Frame warranty10 year's warranty
Fork warranty5 year's warranty
Paint warranty5 year's warranty
Other parts warranty2 year's warranty
Battery warranty2 year's warranty
Motor warranty2 year's warranty
Display warranty2 year's warranty

Other

Lock

ART classificationART**
Other

KickstandUrsus Mooi
Luggage rack

Rear carrier descriptionAluminum MIK system carrier
Carrier MIK ProfileYes
Rear carrier max load (kg)25
Rear carrierYes
