Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

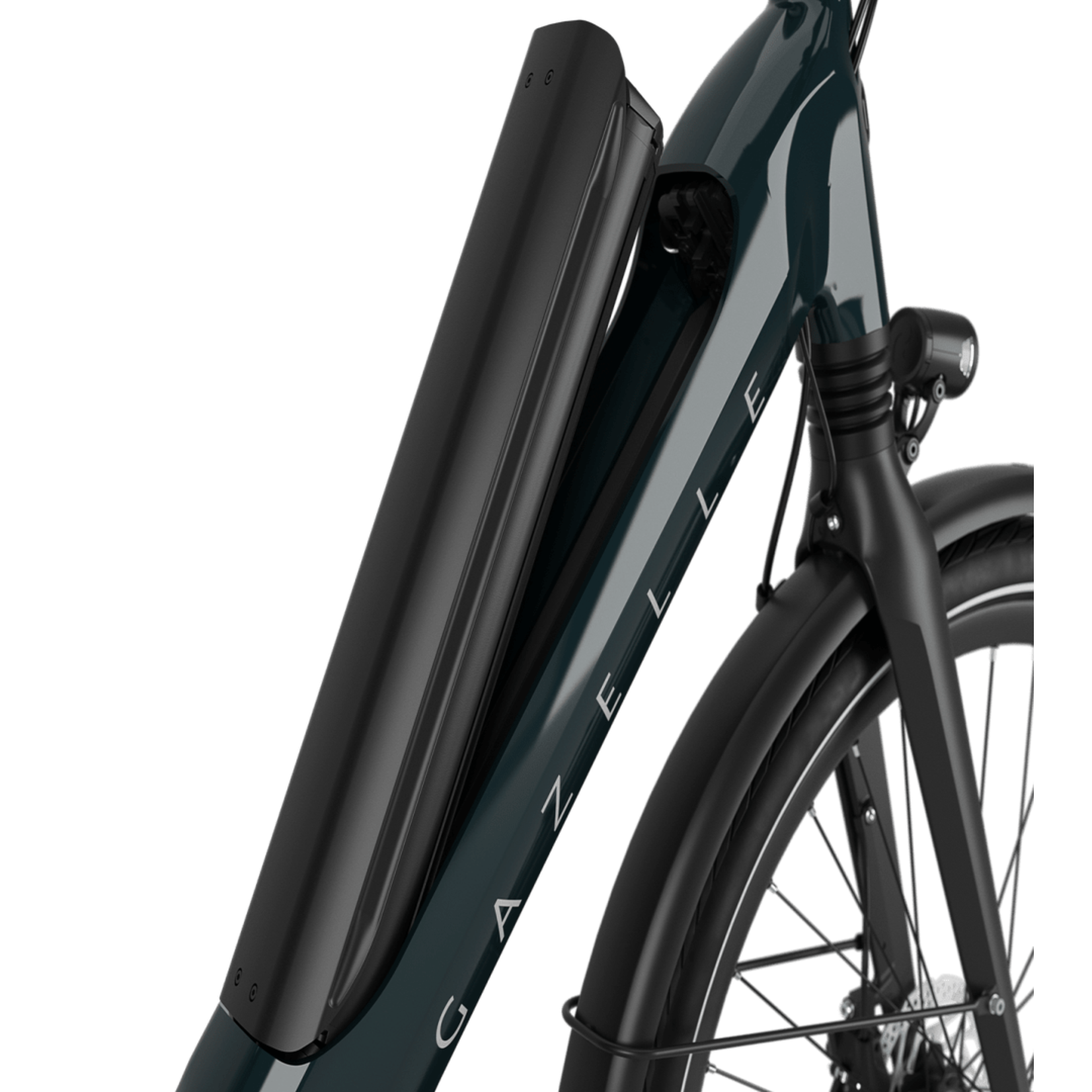

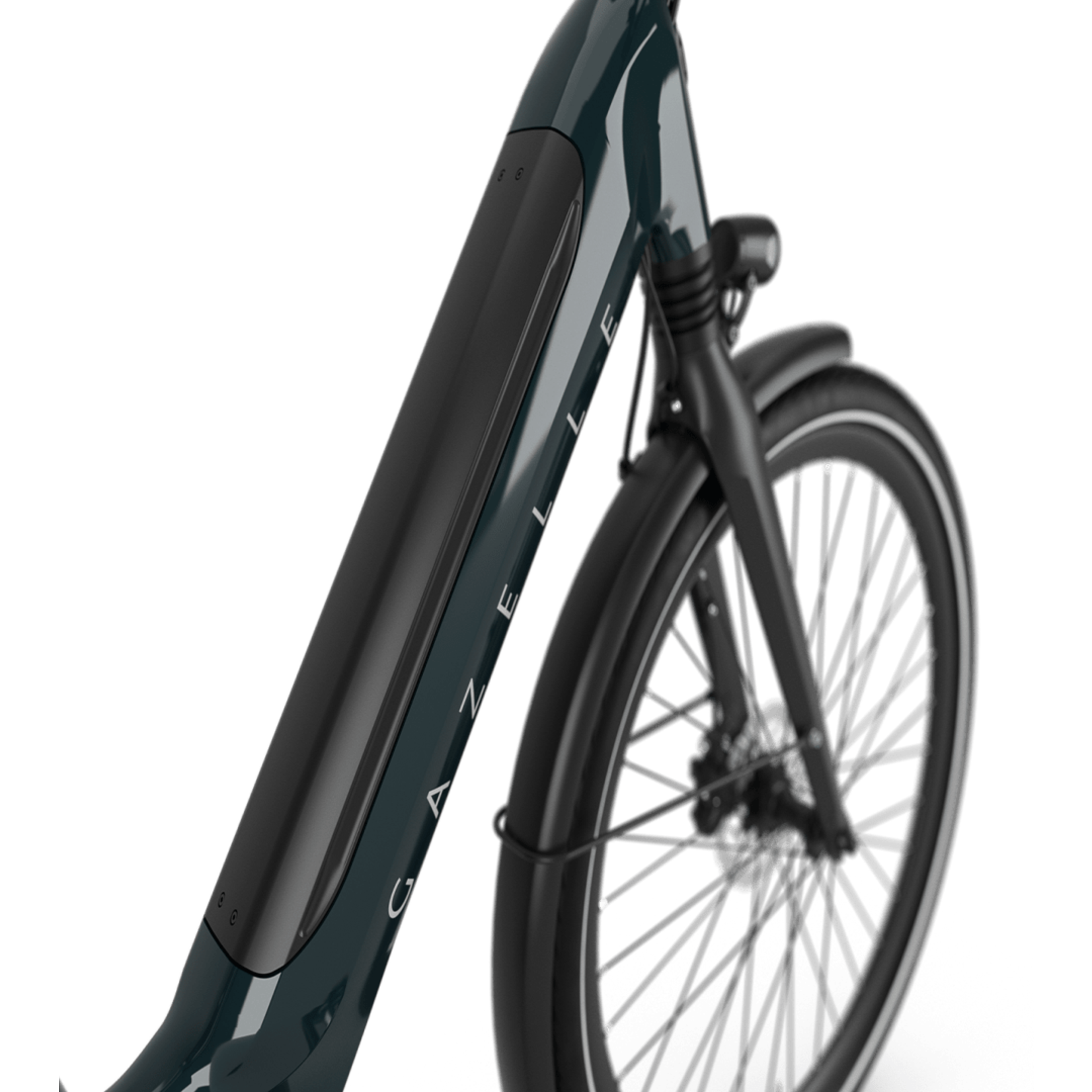

Efficient, integrated power source

Bosch lithium-ion batteries are among the most modern batteries on the market. Their intelligent battery management system guarantees a long lifespan and efficient energy management ensures optimal range. Plus, Bosch's complete system UL certification offers peace of mind. With the integrated 500 Wh battery, you can enjoy extended adventures. The battery is locked into the frame, but can easily be removed using the lock key, so that you can charge the battery anywhere.

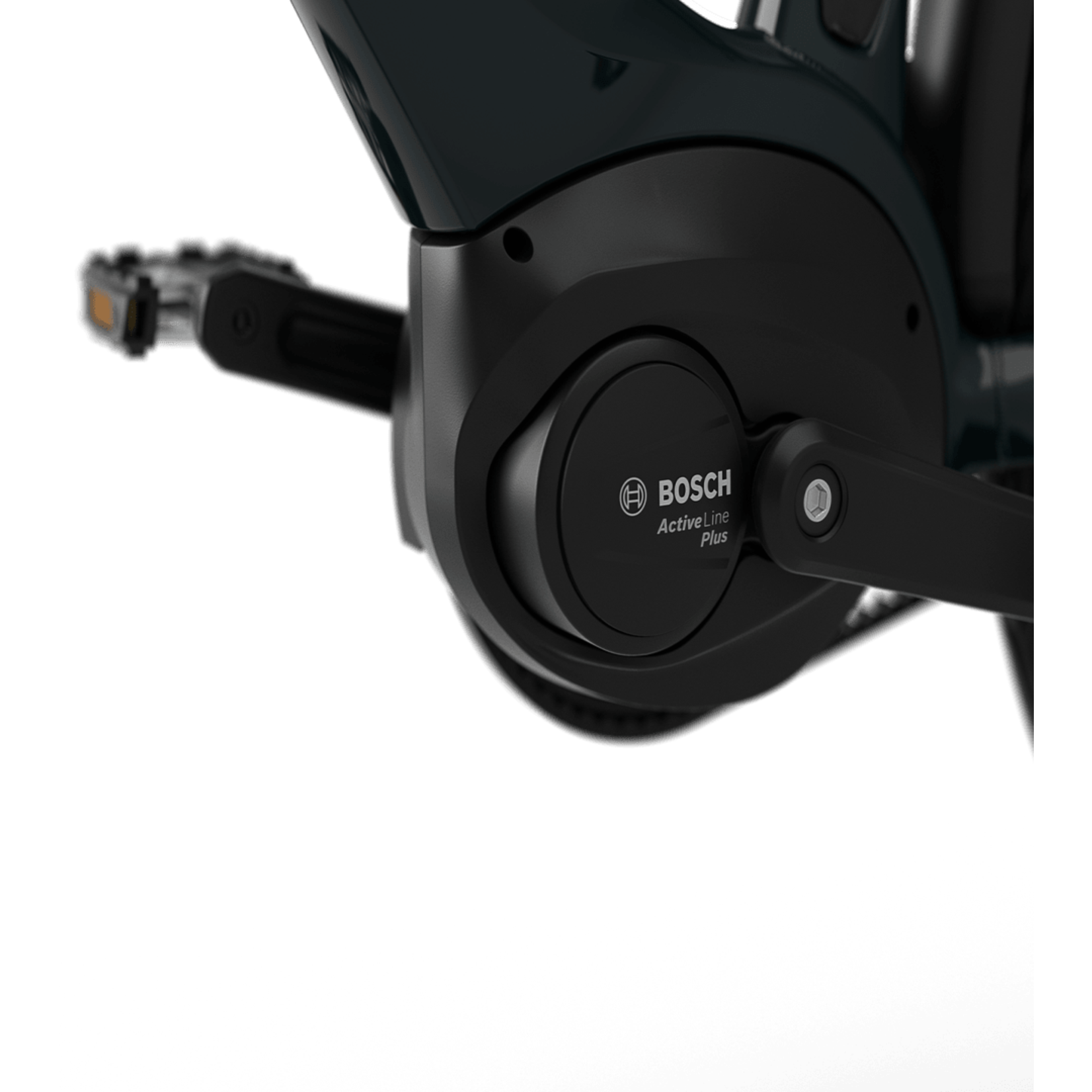

The wind is always at your back with a Bosch Active Line Plus motor

The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.

An award-winning frame

The Ultimate is the pride of our Gazelle ebike family. Recognized for its winning design, the Ultimate is known for its stability as well as its sleekness. Combining sporty rigidity with a comfortable active geometry, the accessible low, step-through frame is easy to mount and dismount, and maintains a low center of gravity. The battery is hidden in the down tube, not only creating a modern look, but also providing a balanced ride feel so you can cycle with confidence in any situation.

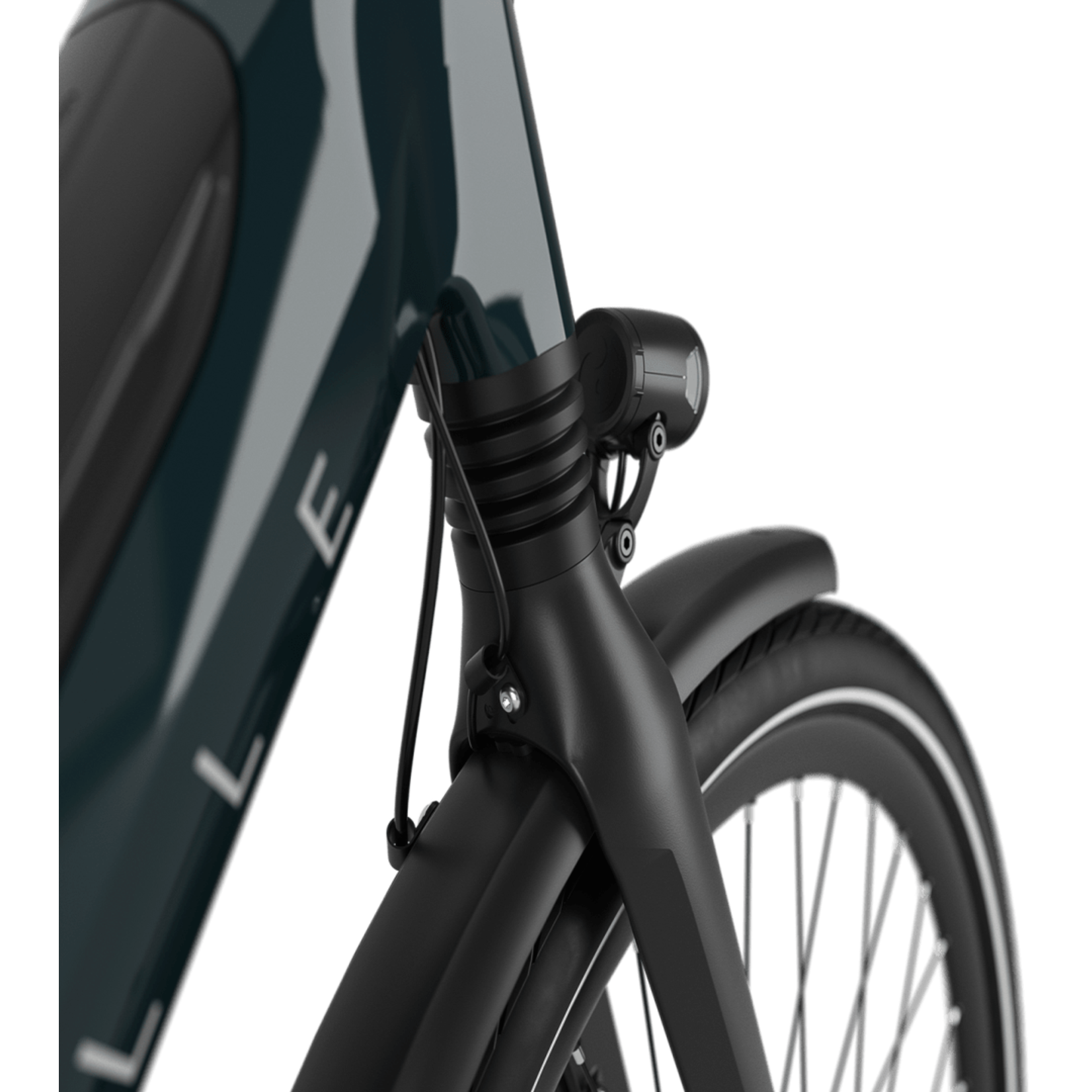

Hidden comfort

At first glance, the Ultimate C8's beautifully styled front fork is a logical addition to its sleek design. Together, they create a distinctive and stylish look. But on closer inspection, you will notice something else: the accordion connection between the frame and fork. Under the rubber is the integrated front-fork suspension that absorbs the impact of bumps in the road surface. The suspension is barely visible, but all the more noticeable. We call that hidden comfort.

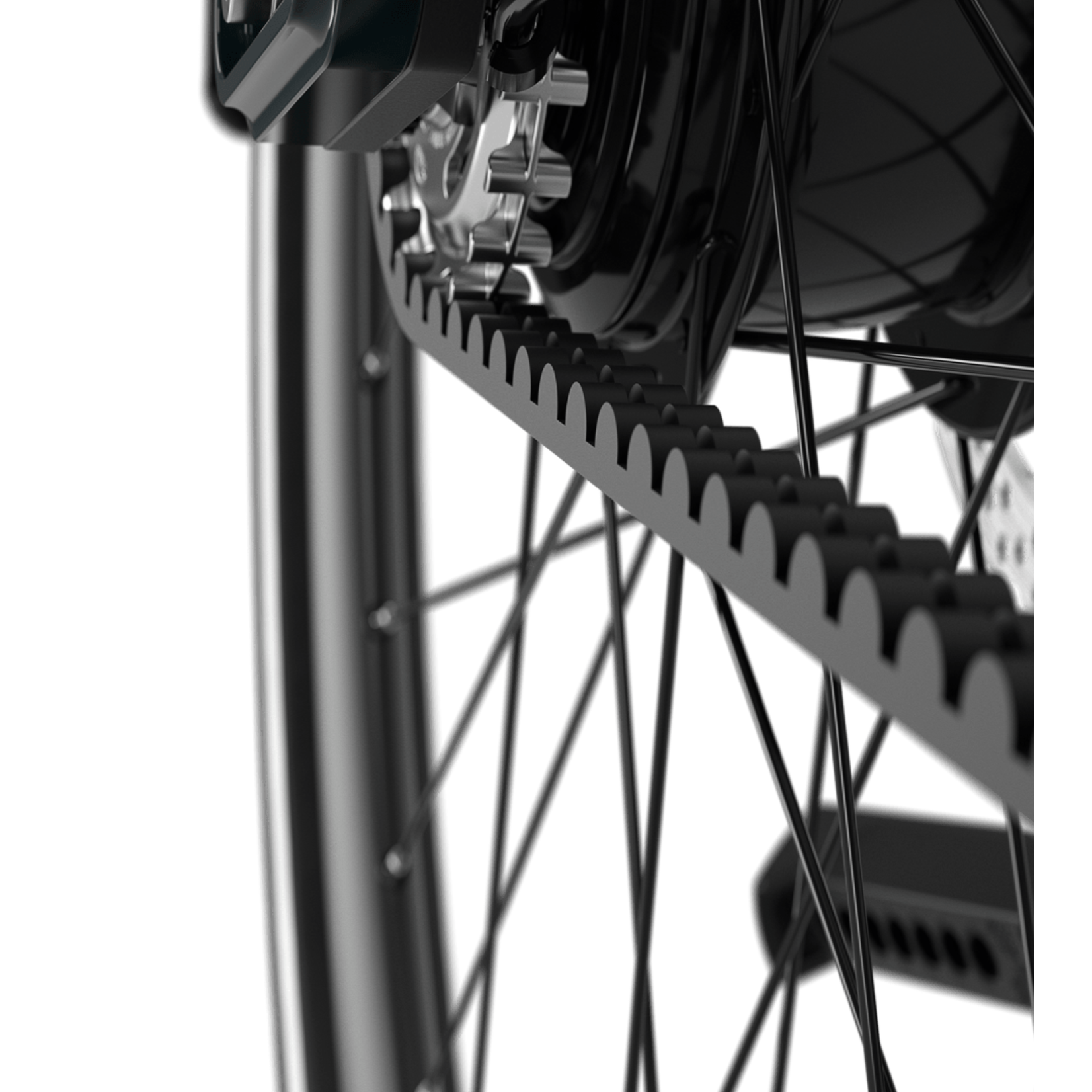

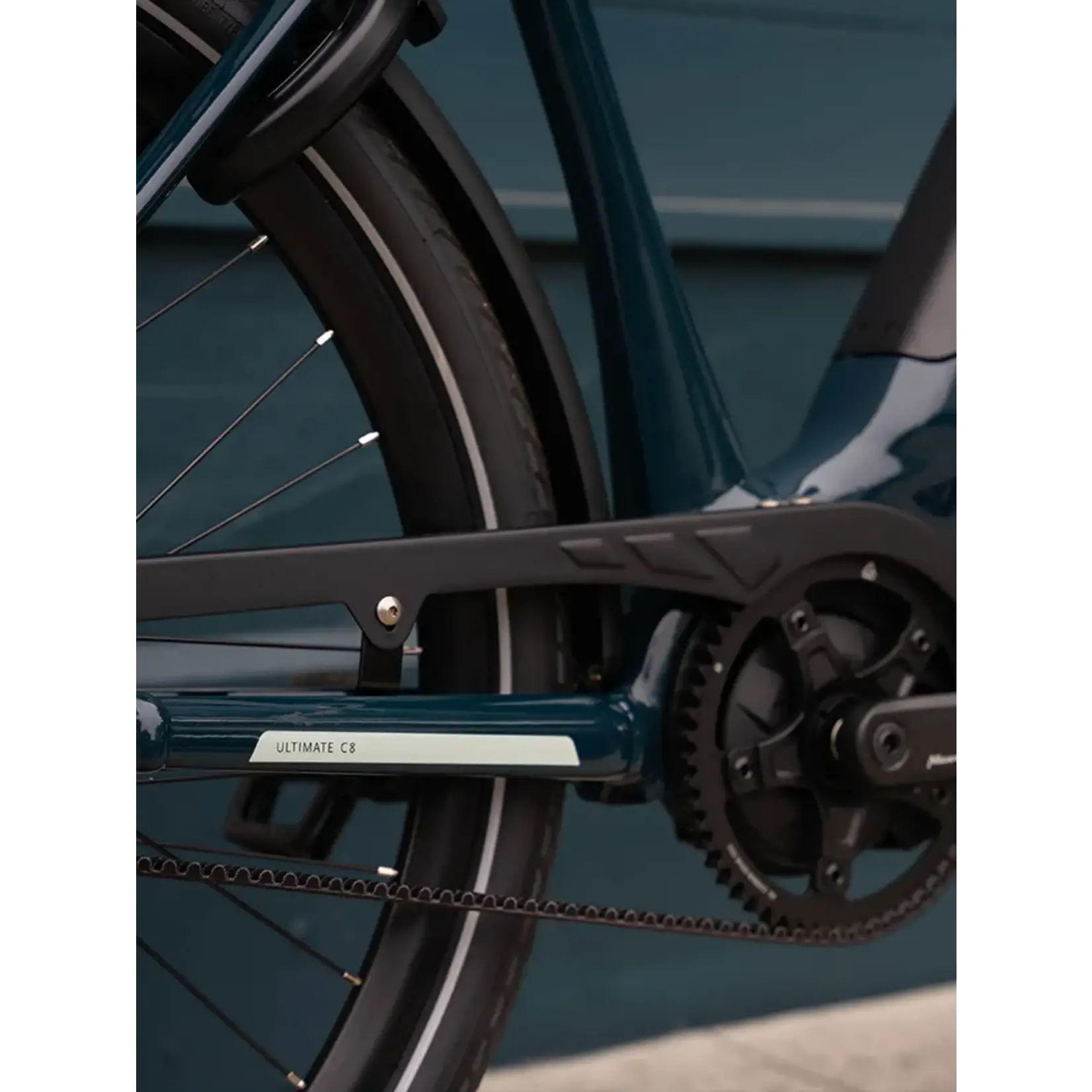

Low maintenance ease

Minimum maintenance equals maximum enjoyment. With the Shimano Nexus 8 system, eight gears are built into the rear hub of the wheel. They are protected against the wind and weather, reducing wear and maintenance. Combined with a durable and hassle-free Gates carbon belt drive, bike maintenance is kept to a minimum, shifting is smooth and silent, and your bike's longevity is all but guaranteed!

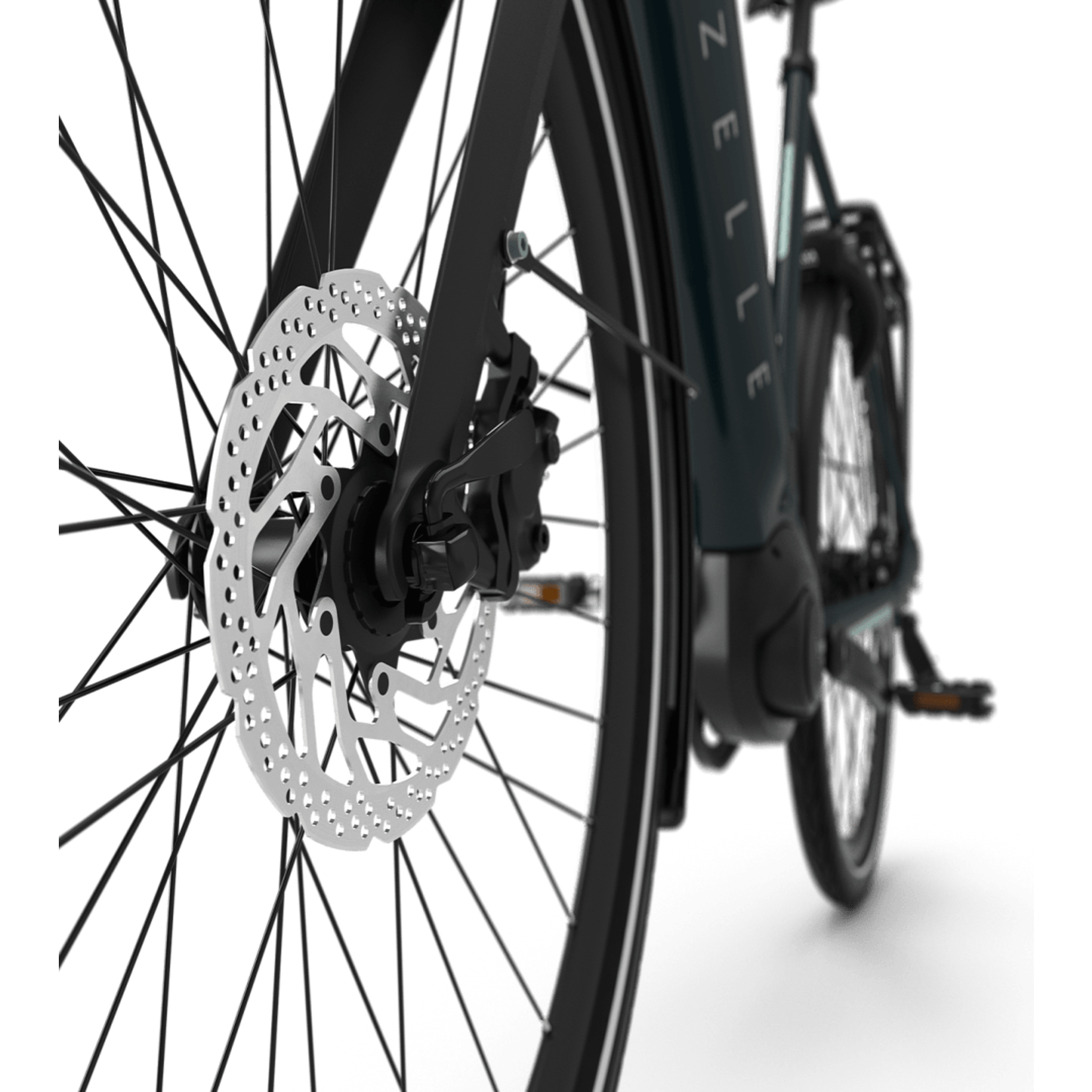

Powerful and controlled braking

With an advanced ebike like the Ultimate C8 HMB, you want to be able to brake safely and confidently without thinking. Hydraulic disc brakes are therefore indispensable, as they provide the power and precision for controlled braking at all times — even when it's raining. With hydraulic disc brakes, you can depend on responsive, well-modulated, and high performance stopping power in all conditions.

Specifications

Highlights

Color
Champion red gloss, pine green gloss
Fork suspension
Mono Integrated
System Model
Active Line Plus
Motor
Bosch Smart System Active Line Plus

General

Bike weight description
Excl. battery
Weight (kg)
24.5 kgs
Weight
24.5 excl. battery
Color
Champion red gloss, pine green gloss
Bike Max. Total Weight (kg)
130
Sitting Position
Active

Frame & Fork

Frame

Frame descriptionStable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Frame materialAluminum
Cockpit Cable IntegrationYes
Frame shapeLow-Step
Frame Size CM46, 53, 57
Fork

Fork MaterialAluminum
Fork suspensionMono Integrated
Fork lockoutNo

Wheels & Tires

Wheels

Front wheel55, Gates
Rear wheel24, Gates
Front rimDutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Rear rimDutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Front hubShimano
Rear hubShimano Nexus 8
WheelSize Front28"
Tires

Wheels Tire Front Etrto50-622
Front tireSchwalbe Energizer Plus
Rear tireSchwalbe Energizer Plus

Transmission & Brakes

Gears

Brand shiftersShimano
Front chainwheel55
Gear TypeHub
Number of gears8
Transmission

DrivetrainBelt
Brakes

Front Brake TypeHydraulic disc brake
Brake sytem codeS8
Front Brake BrandShimano
Primary Rear Brake ModelBR-MT200
Front brakeShimano BR-MT200, 180 mm
Rear brakeShimano BR-MT200, 160 mm
Rear Brake LeverBLMT200

Handlebar & Seat

Handlebar

HandlebarGazelle Aero leather, luxury leather handlebar grips for a sophisticated feel and extra comfort
Stem adjustableYes
Cockpit Handlebar Grip BrandGazelle
Seat

SaddleSelle Royal Essenza Plus

Lighting

Front light

Front lightHerrmans MR8
Front Light Energy SourceBattery
Front Light Lux60
Rear light

Rear Light Energy SourceBattery
Rear lightSpanninga Commuter Glow

E-bike technique

Motor

System ModelActive Line Plus
MotorBosch Smart System Active Line Plus
Ebike System BrandBosch Smart System
Ebike Engine PositionMid
Ebike Max Speed kmh25
Ebike Max Speed mph20
Engine Max Torque (Nm)50
Battery

ChargerBosch Compact charger,
Ebike Battery Charger Description2 Ah
Battery PositionIntergrated in the frame
Display

DisplayBosch Purion 200
Display RemoveableYes
Ebike Walk AssistYes
Display TypeLCDc

Service

Garantie

Frame warranty10 year's warranty
Fork warranty5 year's warranty
Paint warranty5 year's warranty
Other parts warranty2 year's warranty
Battery warranty2 year's warranty
Motor warranty2 year's warranty
Display warranty2 year's warranty

Other

Lock

LockAxa
Lock brandAxa
ART classificationART**
Other

KickstandUrsus Mooi
Luggage rack

Rear carrier descriptionAluminum MIK HD system carrier
Rear carrier max load (kg)27
Rear carrierYes
