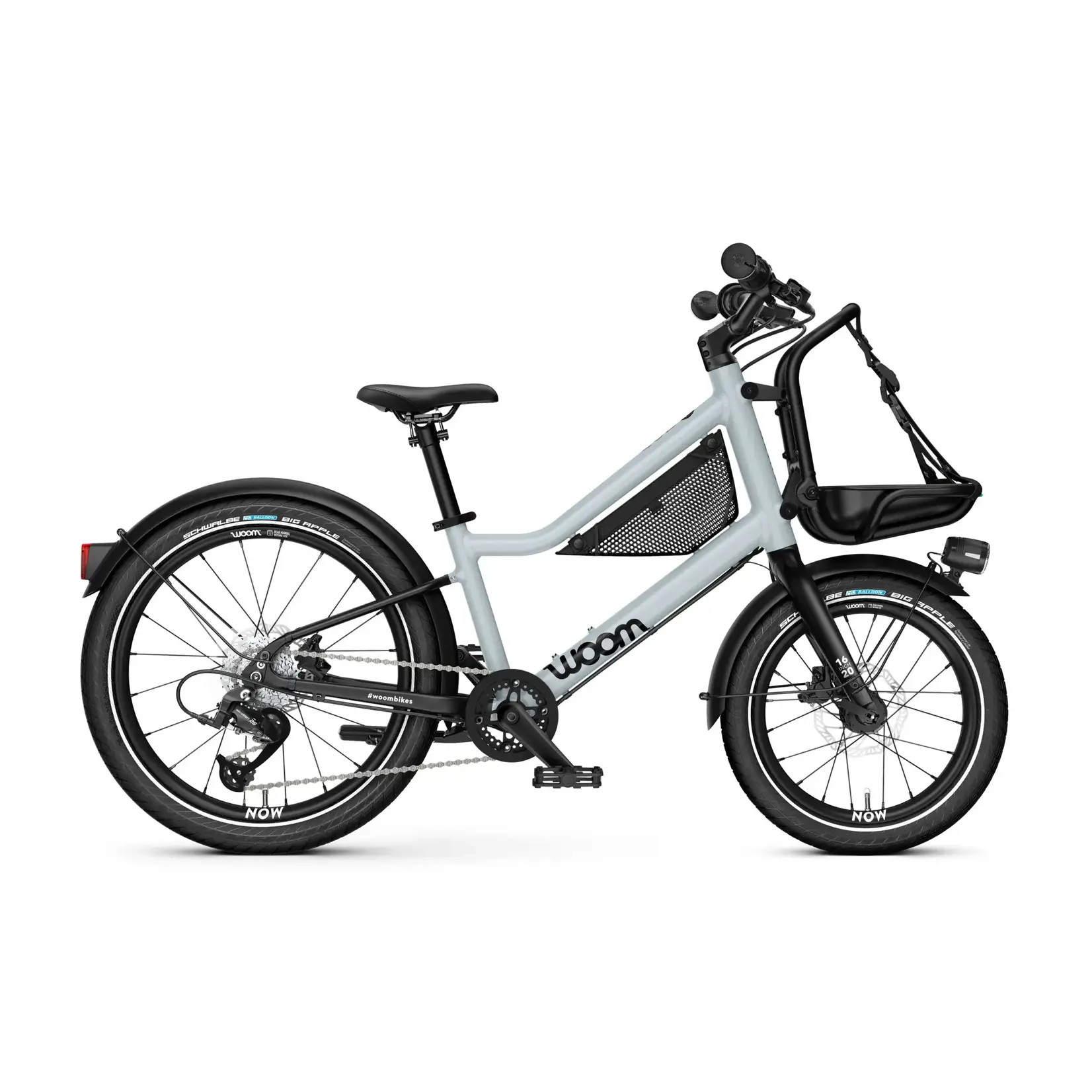

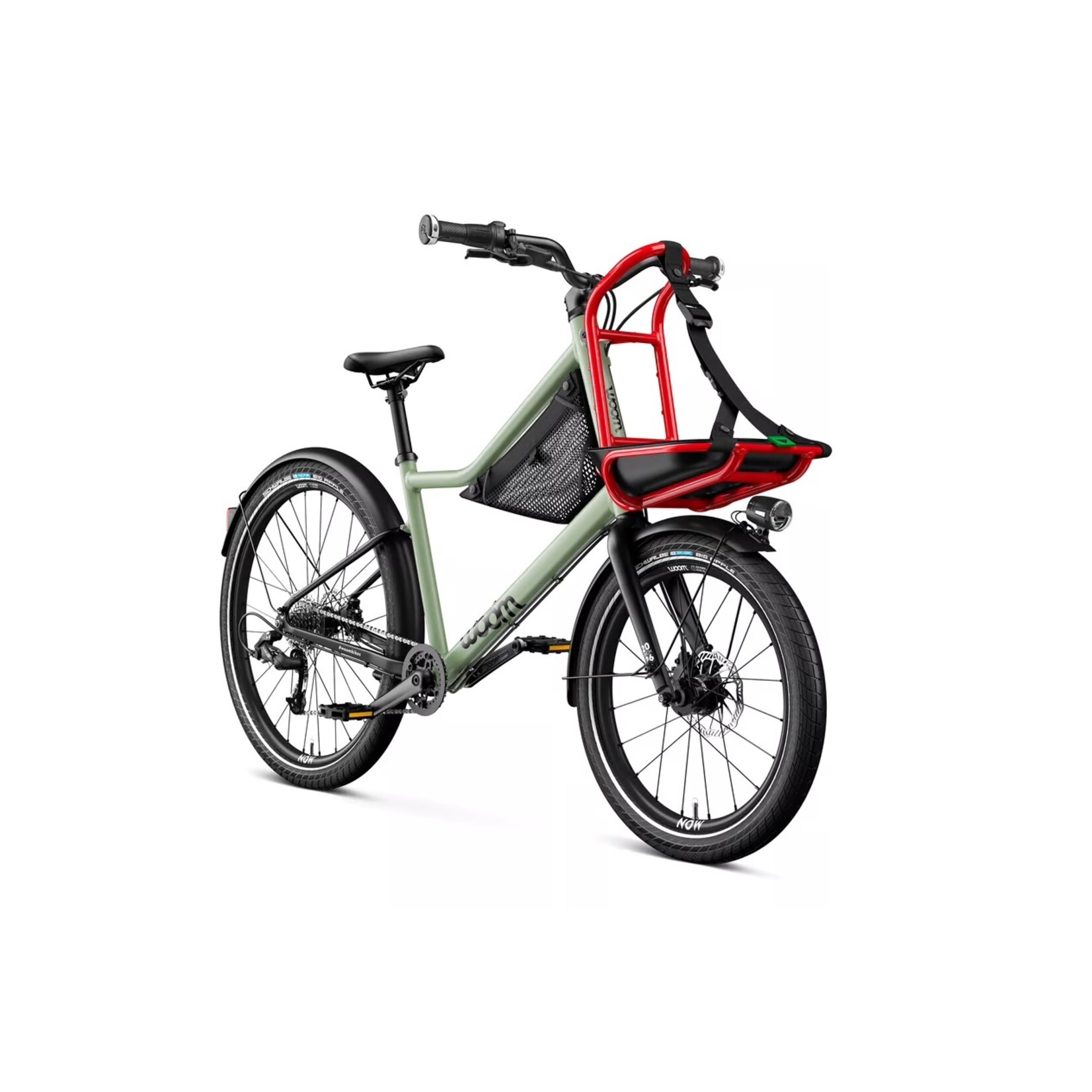

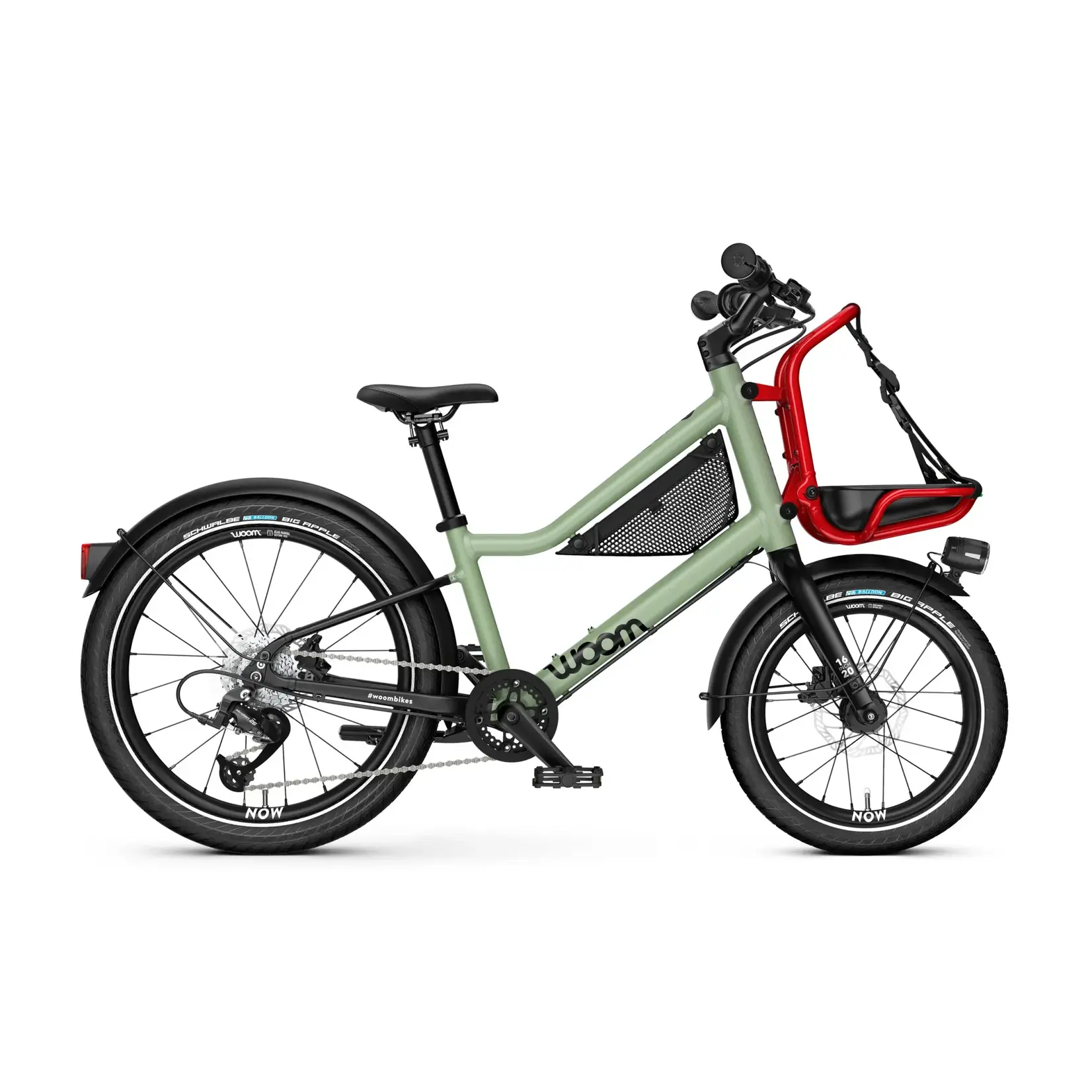

The revolutionary bike for the urban lifestyle—where style meets practicality with a front rack and innovative frame design (16-inch front wheel, 20-inch rear wheel) for riders age 6 and up.
Specifications
Frame
- Frame material: lightweight, high-quality AA 6061 aluminum with butted tubes
- Wheel size: 16" front, 20" rear
- Agile handling: The low center of gravity (created by the smaller front wheel) and upright riding position ensure stable balance, confident handling, an optimal view of the road, and a relaxed ride (even when loaded with a heavy school bag).

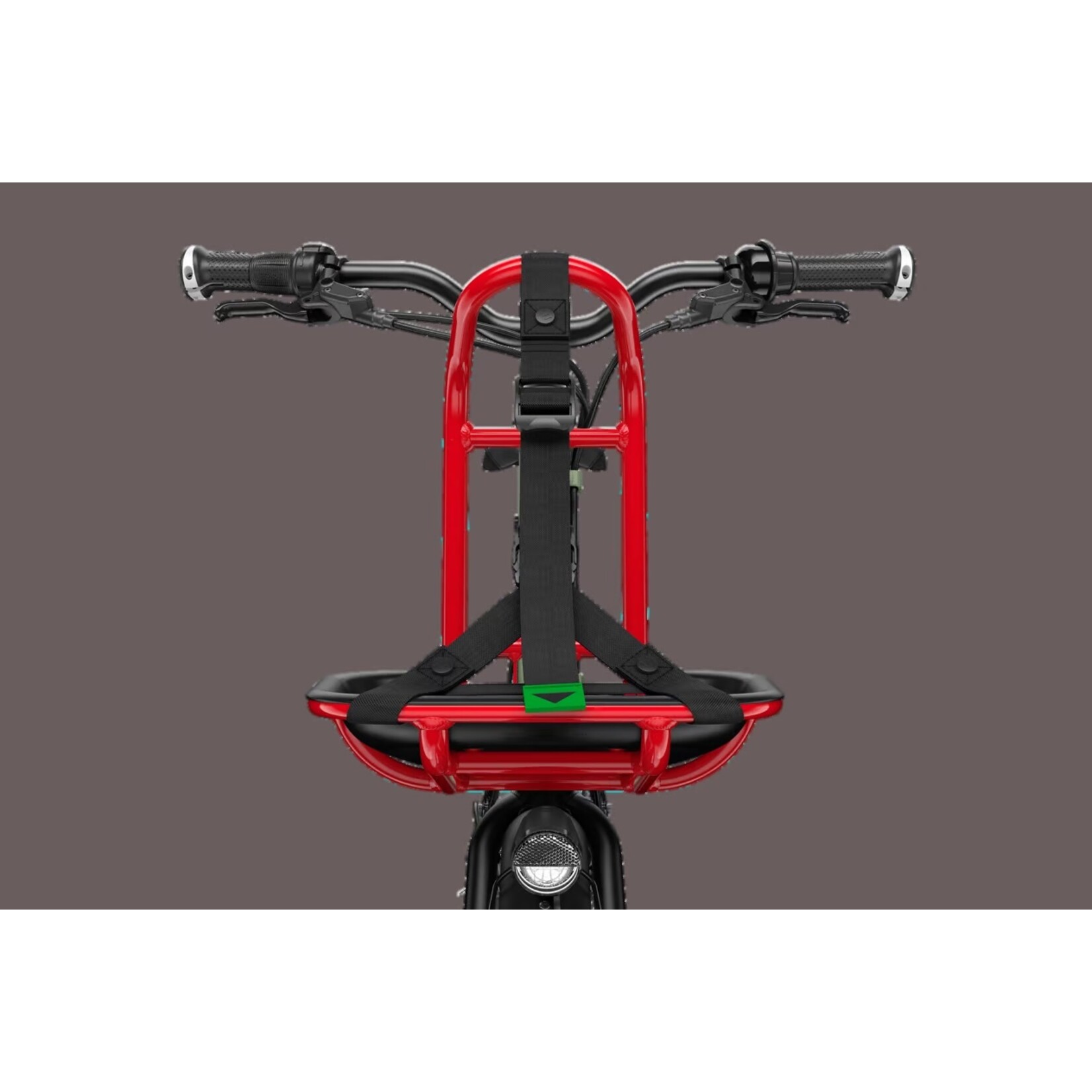

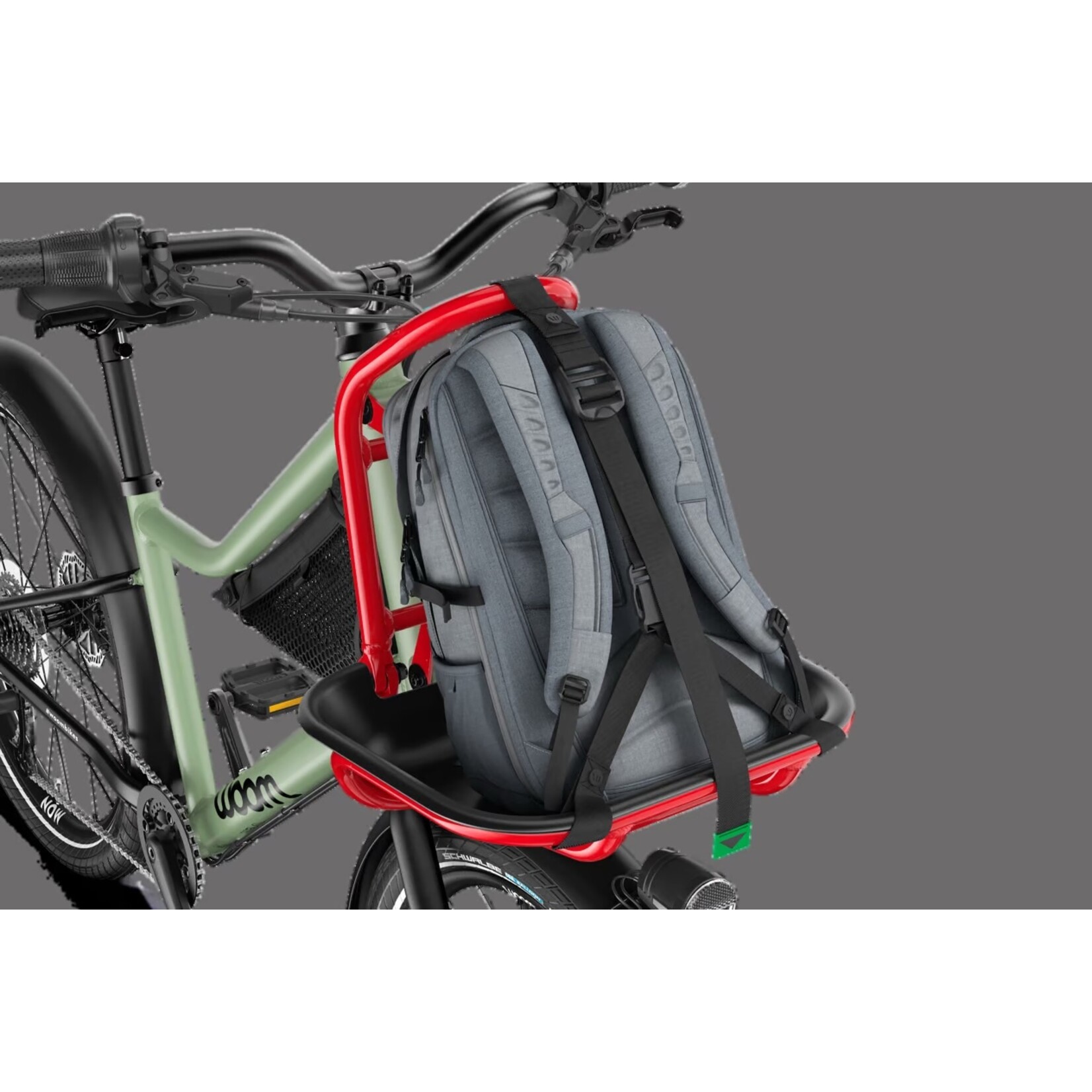

Rack
- Specially developed, frame-mounted aluminum front rack engineered for stable handling, even when heavily loaded
- Integrated, adjustable cargo straps
- Optimal steering thanks to the height limiter, which prevents tall objects from interfering with steering
- Removable soft plastic inlay keeps loose straps away from the wheel
- Lower section folds up
- Dual accessory mounts on either side of the rack add extra space for bottles or folding locks
- Maximum load: 22 lbs
- Rack Dimensions: 8" length x 10.8" width x 11.5" height
Equipped for the urban environment
- Bar-mounted twist-grip bike bell lets you keep your hand safely on the bars

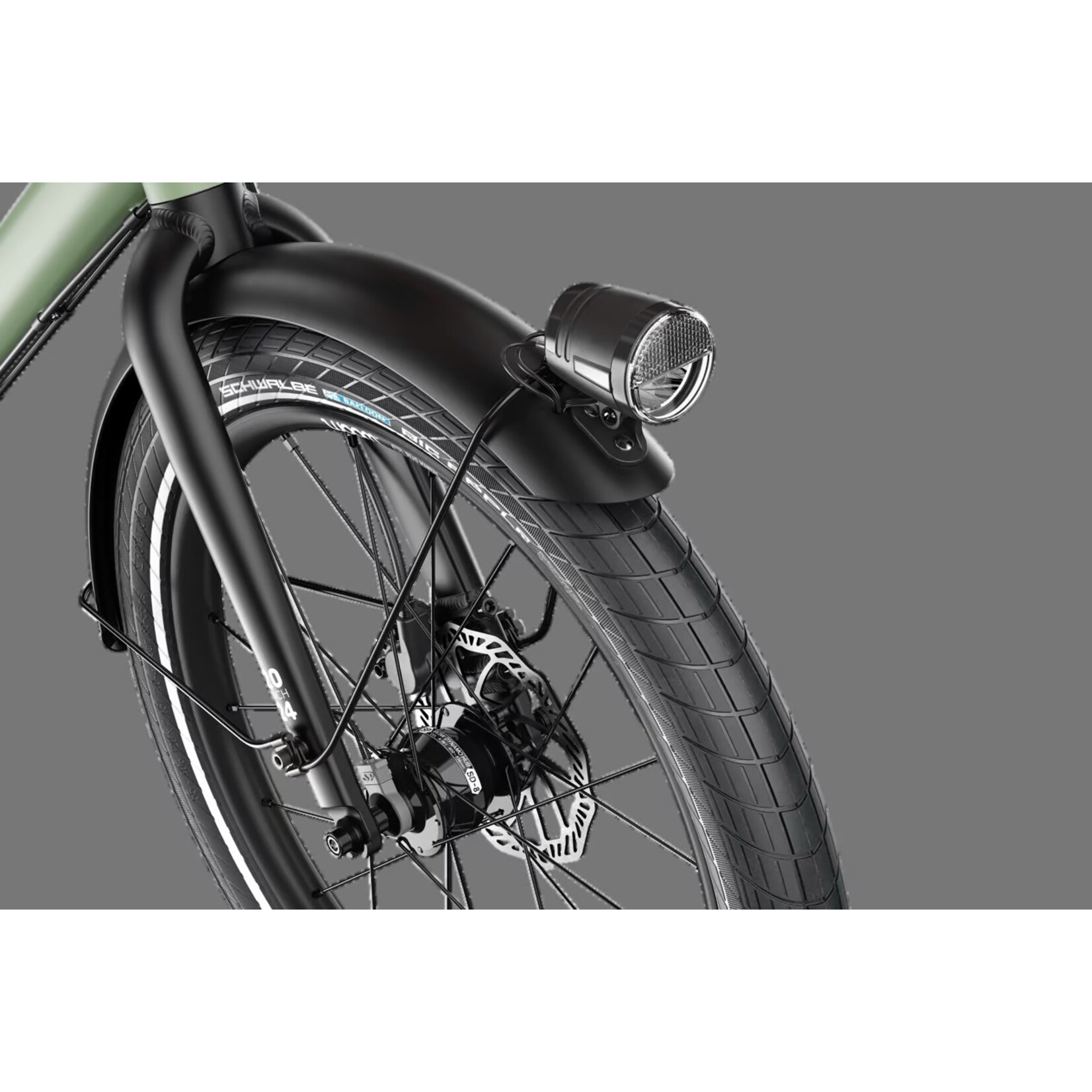

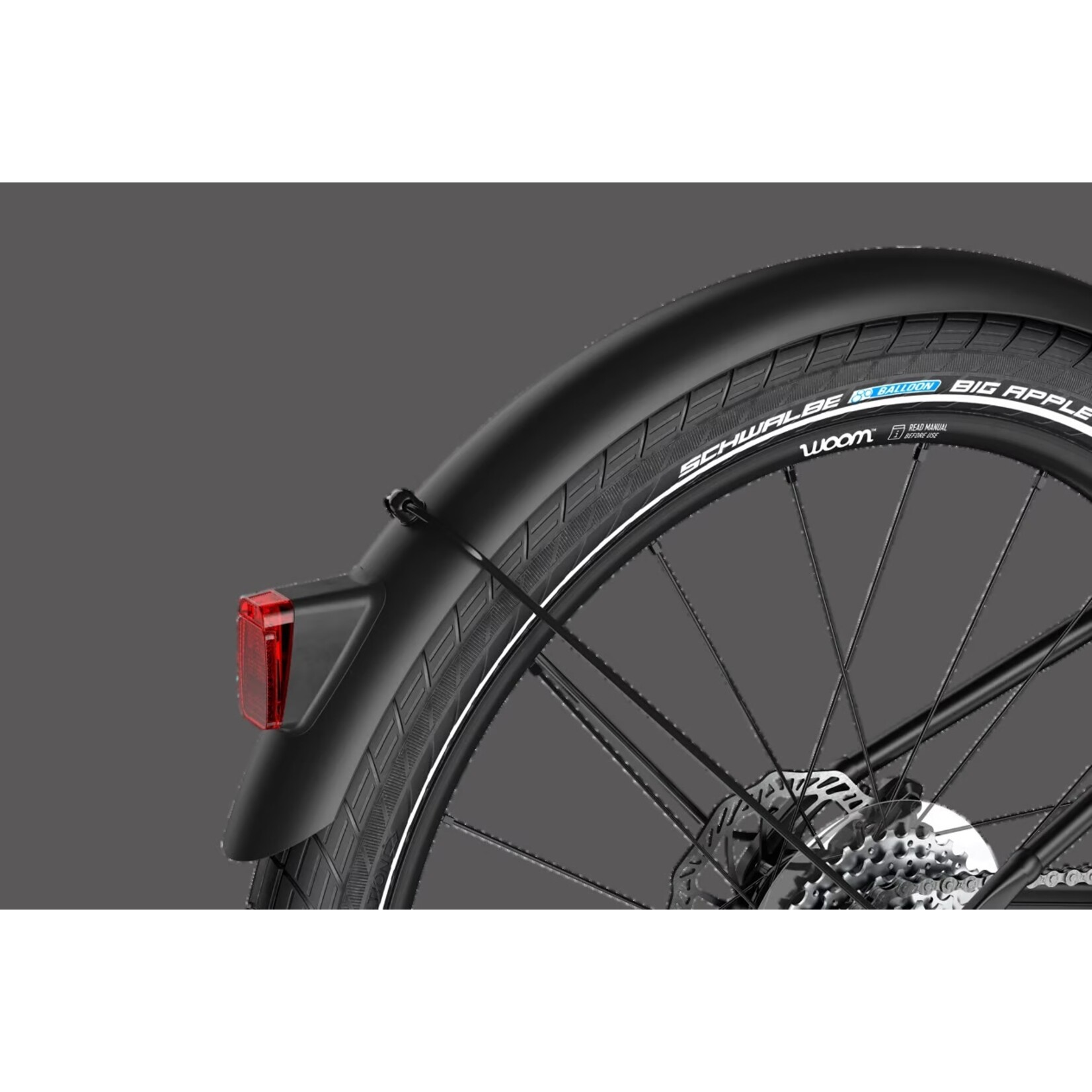

- Non-removable, powerful LED lights (white front, red rear) powered by premium Shutter Precision SD-8 dynamo hub
- LED lights with backup standlight function when stationary
- Wide, durable fenders with hard-wearing stainless-steel stays for dependable protection against dirt and road spray
- Anti-slip flat plastic pedals with integrated yellow reflectors
- Robust, mid-mounted, easy-to-use aluminum kickstand
Gears
- 8 speed
- microSHIFT DS85-8 twist shifter
- microSHIFT M26S rear derailleur
Fork
- Lightweight aluminum unicrown fork
- 1 ⅛" steerer
- Fork angle optimized for agile handling when fully loaded
- Flat mount for disc brake

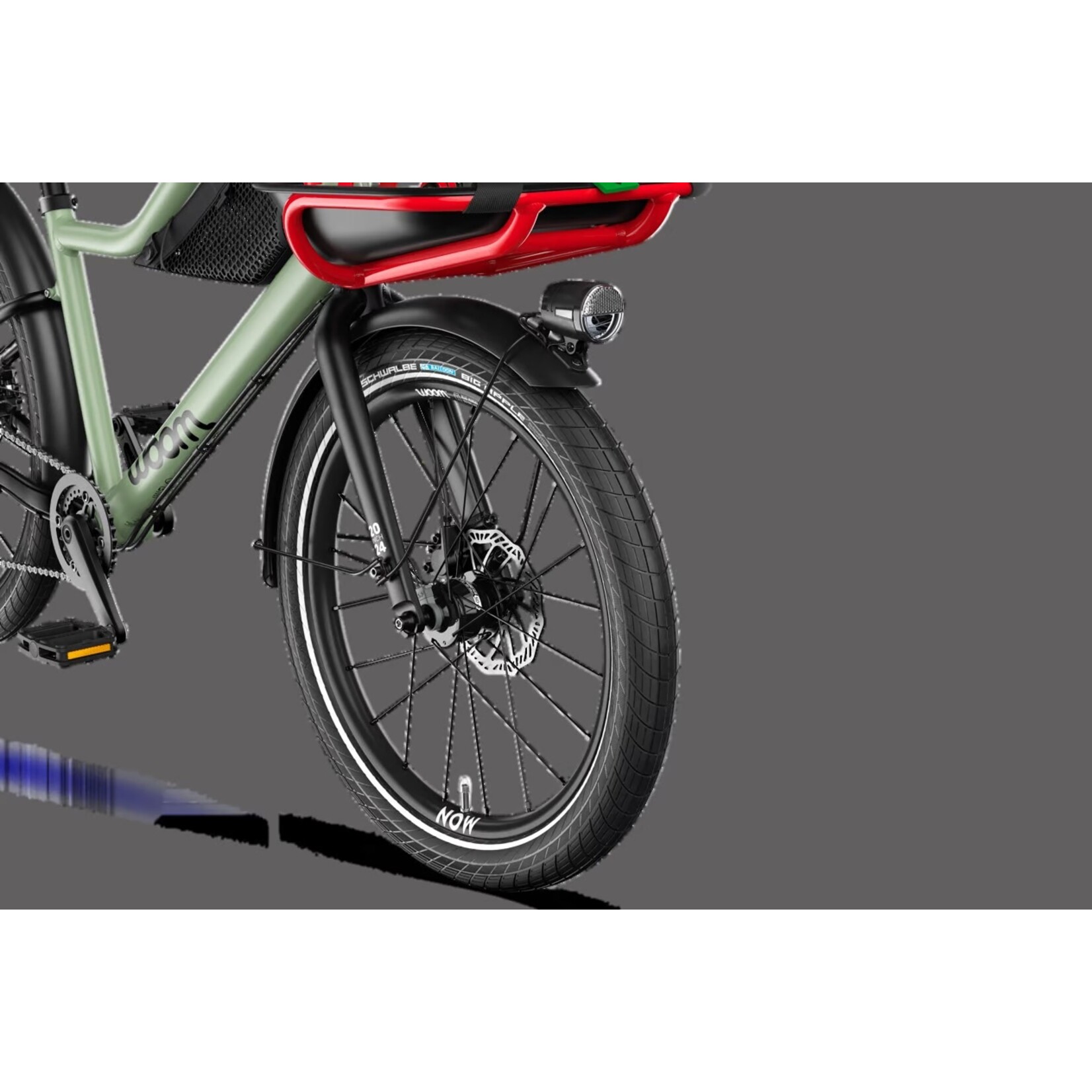

Wheels
- Lightweight aluminum rims
- Shutter Precision SD-8 dynamo front hub, quick-release skewer for easy installation and removal of front wheel
- Aluminum rear hub with sealed industrial-grade bearings
- 20 Double-crossed stainless-steel spokes on front and rear wheel
Headset
- Integrated 1 ⅛″ headset
- Sealed industrial-grade bearings
- Integrated Ahead clamp
Tires
- Schwalbe Big Apple balloon tires with RaceGuard puncture protection
- Front 16" x 2" folding bead tire / Rear 20" x 2.15" folding bead tire
- Premium, super-wide tires with natural dampening thanks to their large air volume
- Car-type (Schrader) valves allow the tires to be pumped up at gas stations
- Reflective stripe on the sidewalls for increased visibility in low-light conditions
Stem
- Ultralight stem made out of forged aluminum
- 40 mm length / +15°
- Knee-friendly design with recessed clamp bolts and a sleek, rounded design
- Two hexagon socket bolts attaching handlebars to stem
- Integrated star nut and bolt
Seat
- Ultra-comfy
- Ergonomic and age-specific design
- Water-repellent surface, no sponge effect
- Anti-abrasion material on the sides

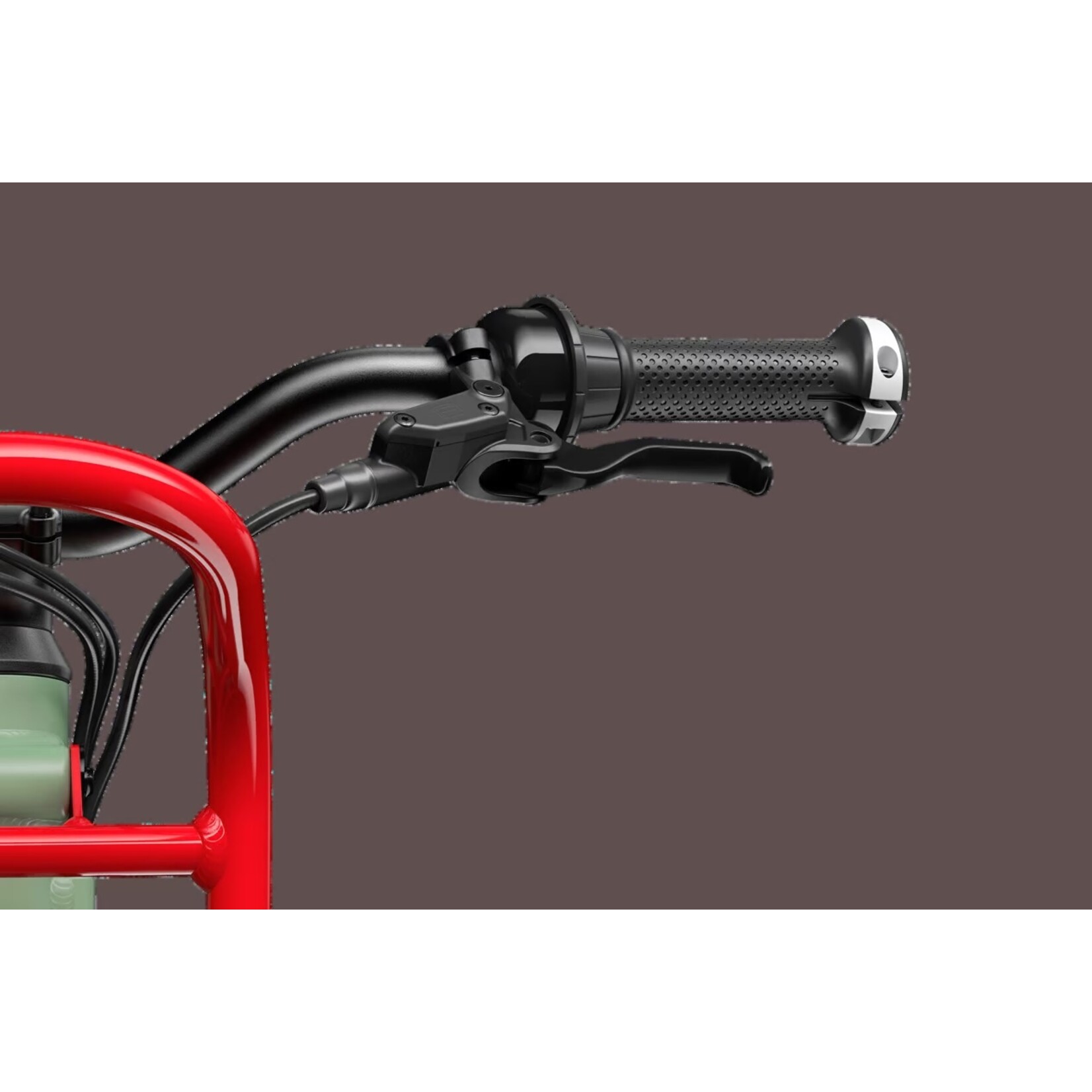

Handlebars
- Wide, ergonomic, and lightweight aluminum bars with 15° backsweep for control and a natural arm position
- Sandblasted and anodized in black
- Width: 580 mm
- Rise: 35 mm
Seatpost
- Anodized aluminum seatpost with minimum insertion depth and current saddle position marked
Grips
- woom Ergogrips with a small, child-friendly diameter
- Ergonomic surface
- Oversized grip ends for greater protection
- Lock-on design attaches grips securely to the bars
Seatpost clamp
- Made from aluminum
- Extra-long quick-release lever, easy to operate requiring minimal strength
- No risk of turning and/or twisting
Drivetrain
- Lightweight, 110 mm cranks forged from aluminum with a narrow Q-factor
- Narrow-wide chainring with 28 teeth
- Cassette with 11–28 teeth
- Narrow plastic flat pedals with integrated yellow reflectors
- Fully sealed cartridge bottom bracket
Enclosed tools
- Hex keys (3 mm, 4 mm, 5 mm) for stem, seatpost, wheels, etc.
- 15 mm pedal wrench
Brakes
- Flat mount hydraulic disc brakes from Promax or C-Star (depending on availability)
- Disc diameter front/back: 140/140 mm
- Ergonomic brake levers designed for children's hands
- Rear disc brakes protected within the frame to prevent damage
Weight 23.6 lbs
Weight limit 195 lbs (maximum combined weight of Rider and cargo)
