Exploring Made Easy

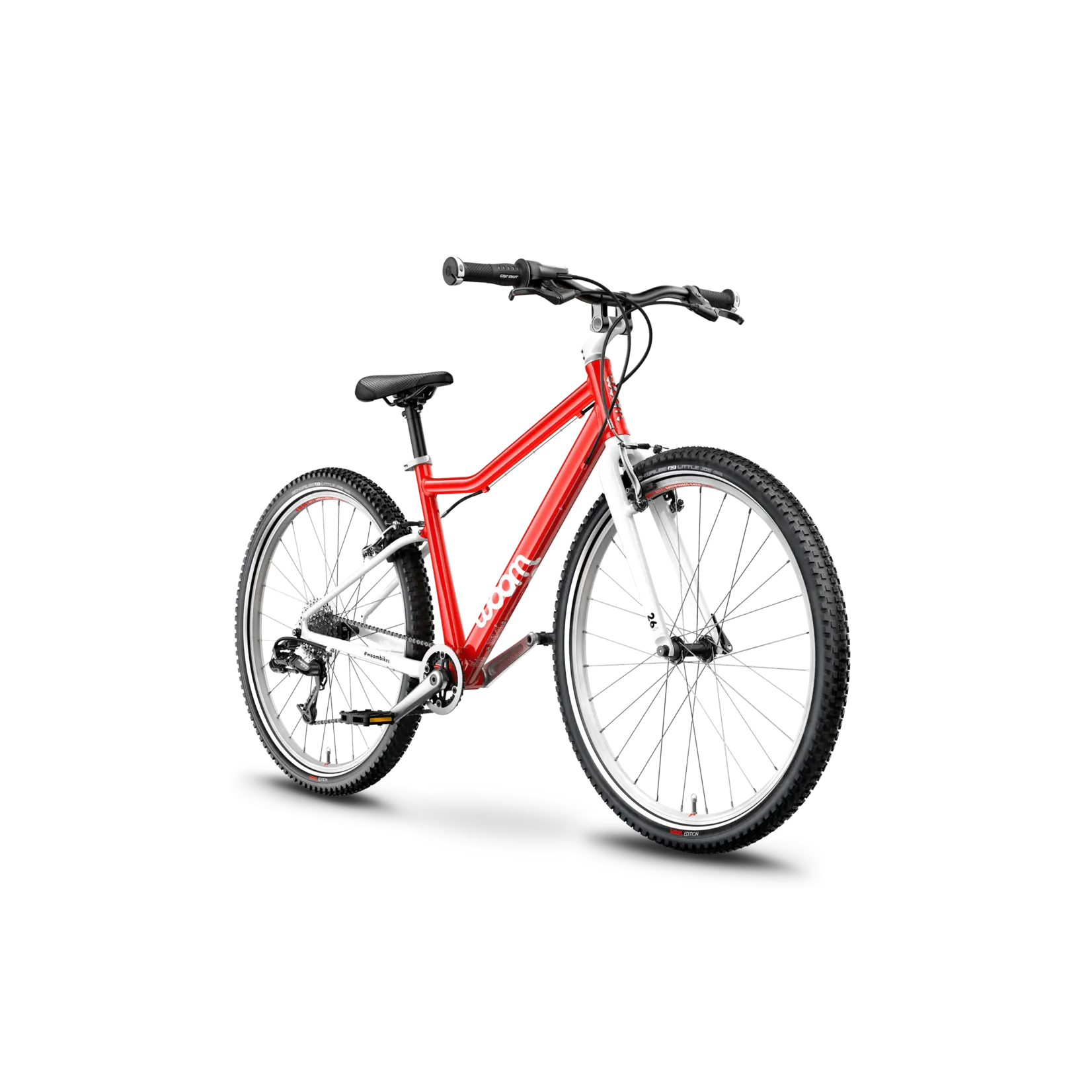

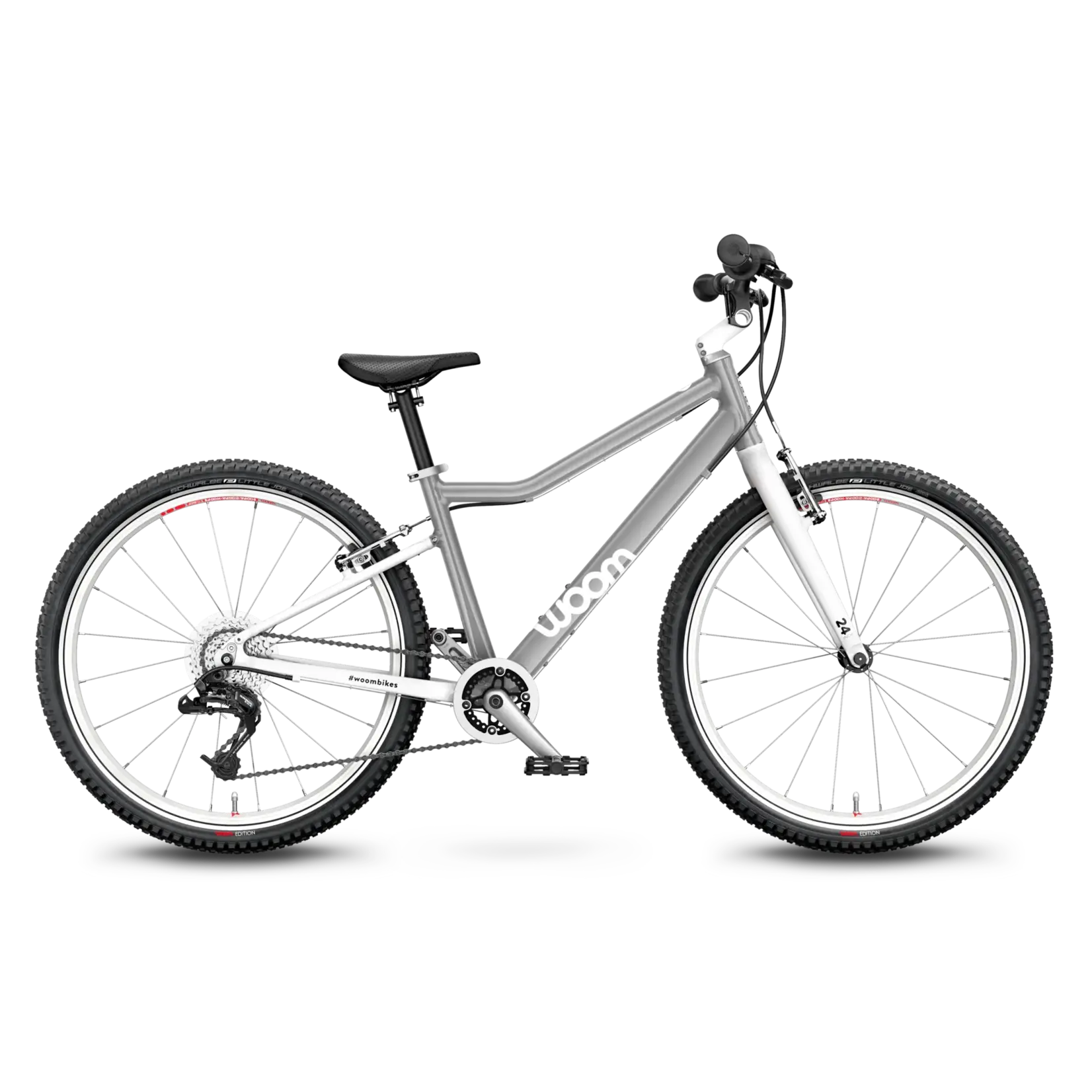

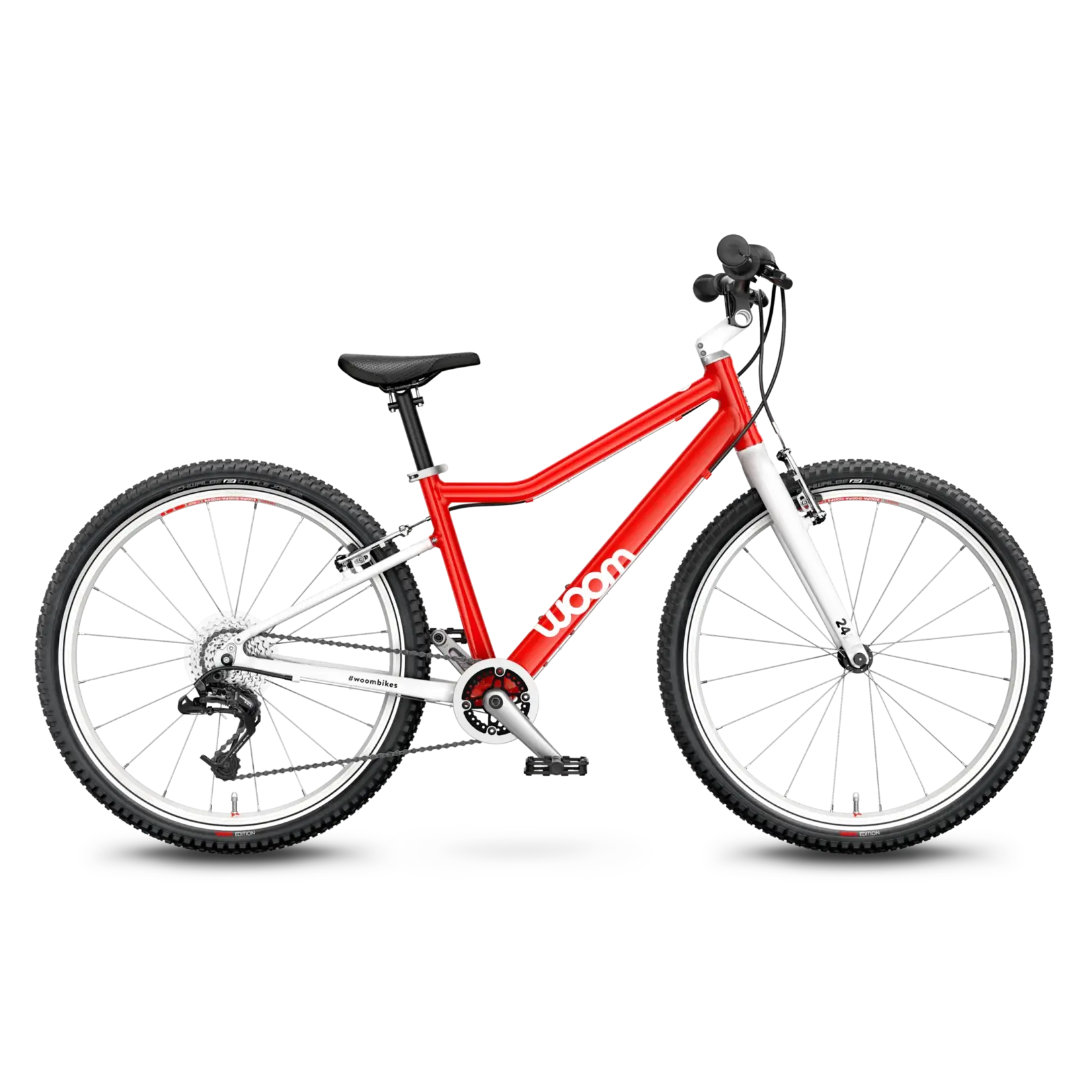

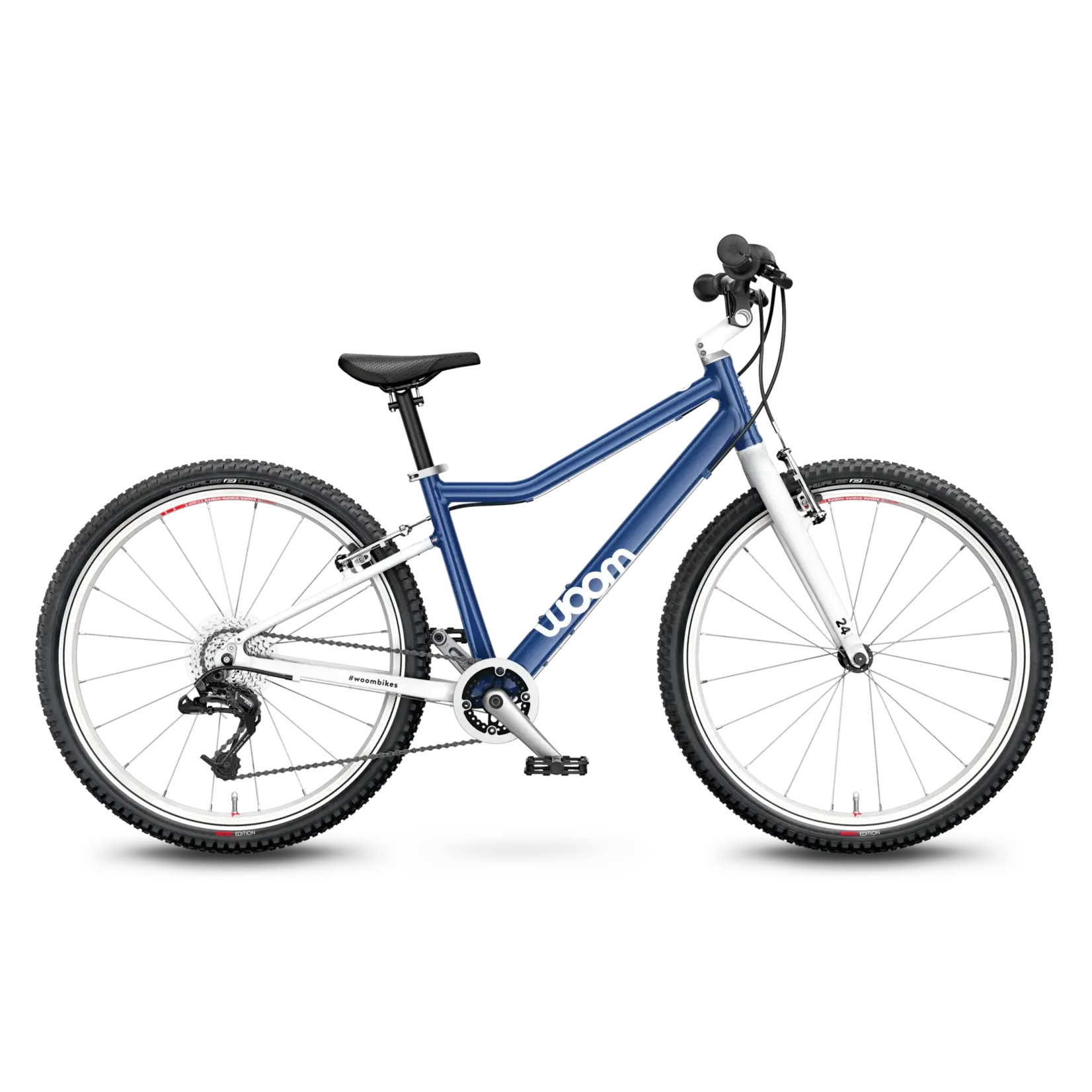

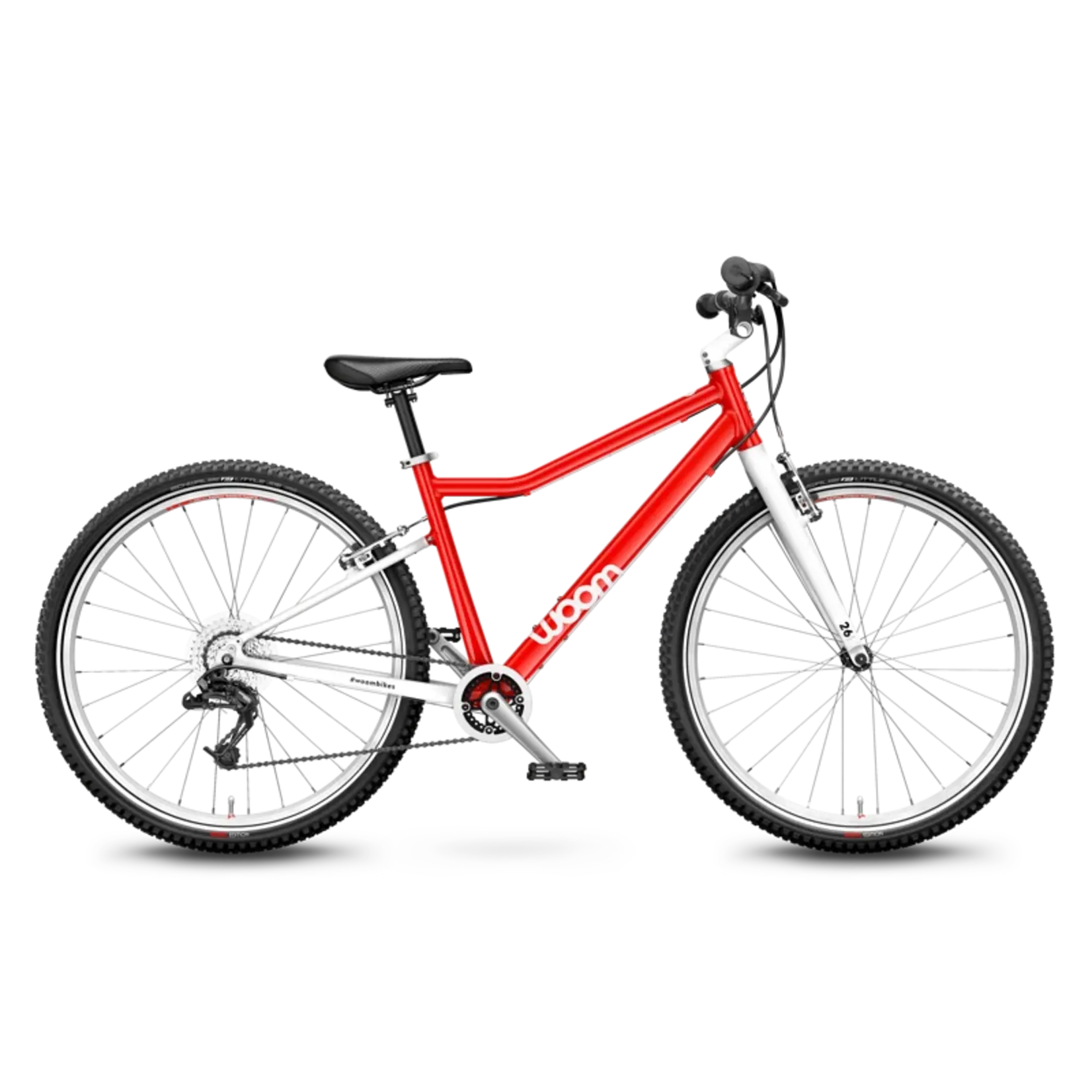

The woom 5 enables kids seven and up explore further than ever before. The grip shifter and gears make conquering that big hill in the neighborhood no problem. And racing friends down the street is easy with a ultralight frame and tailor-made wheels. No matter the trail, the woom 5 ensures a fun and safe ride!

Specifications

Frame

• Made from light, high-quality AA 6061 aluminum material
• Geometrically designed with 24” wheels with agile and easy handling in mind
• Low entry, lower sitting position, and forgiving steering geometry provide control and comfort
• woom Leggie kickstand pre-installed

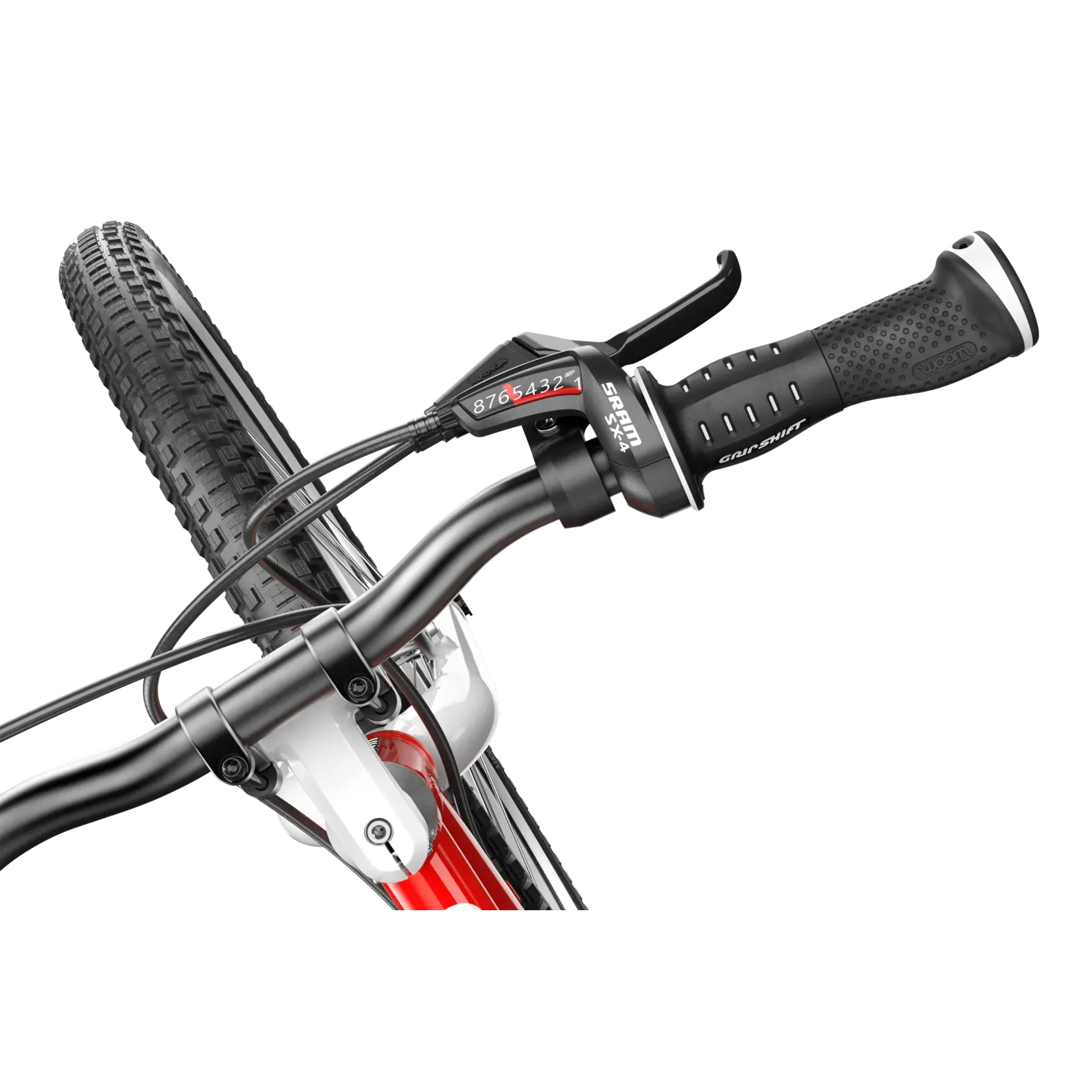

Gears

• 8 speeds
• SRAM X4 twist shifter
• SRAM X4 rear derailleur

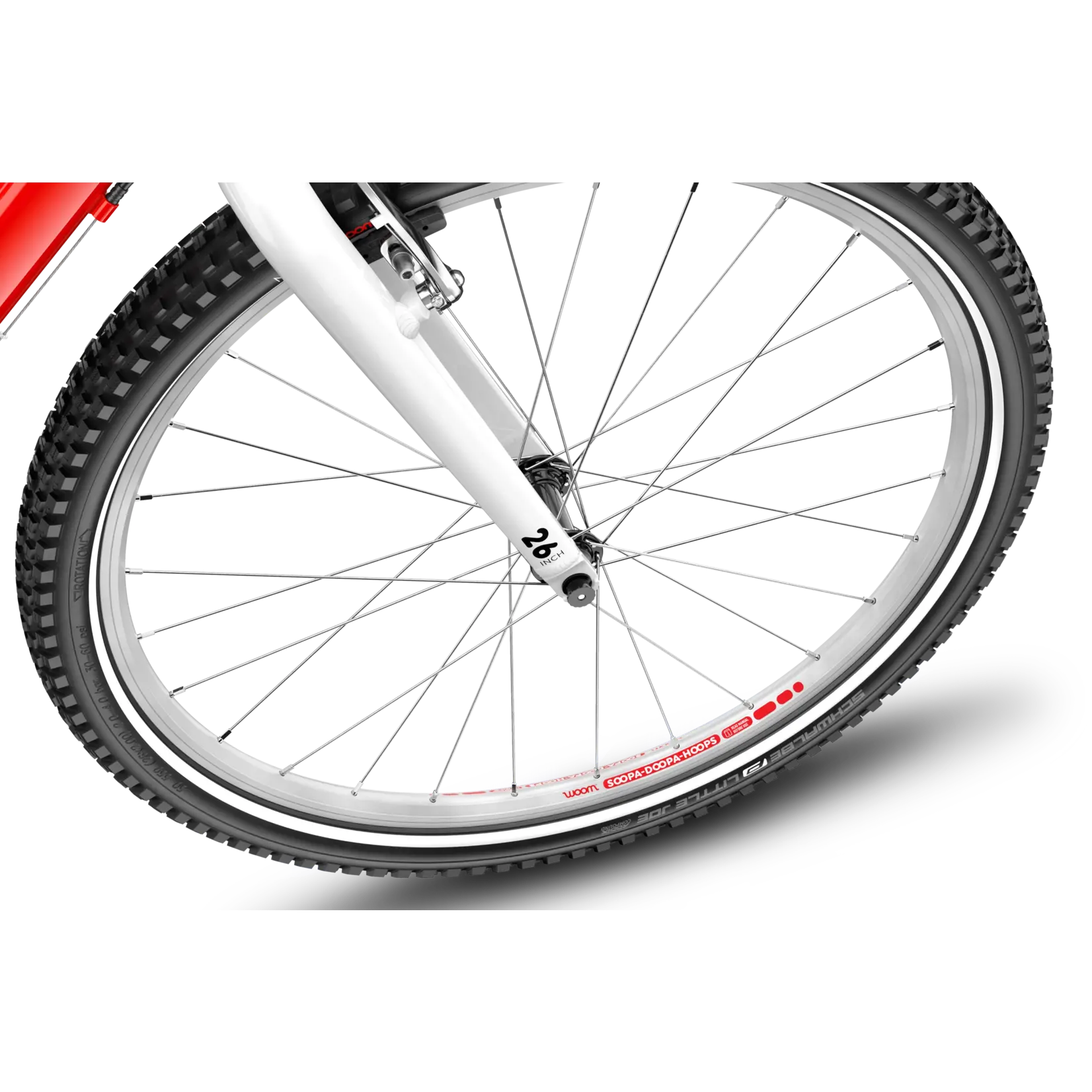

Wheels

• Ultralight SOOPA DOOPA HOOPS aluminum rims
• 20 lightweight, super strong, stainless steel spokes, crossed spoking
• Aluminum hubs with sealed bearings and mounts for woom click-on fenders
• Quick-release skewers for easy installation and removal

Fork

• Light unicrown fork made out of aluminum
• 1″ shaft
• Generous trail angle for easy handling

Tires

• 24 x 1.85″ Schwalbe Little Joe - woom edition
• High-quality, light tires for low rolling resistance and maximum grip
• Schrader (car-type) valves
• Reflective stripes on the sides of the tires for optimal visibility even in low-light conditions

Headset

• Fully-integrated 1″ headset
• Sealed industrial bearings
• Integrated ahead clamp

Steering Limiter

• Detachable rubber ring attached to the fork and frame
• Assists in steering stabilization and overturn prevention
• Designed with a breakaway feature

Stem

• Superlight stem made out of forged aluminum; 40 mm / +15°
• Adjustable height and reach mean the stem can be adjusted for optimal riding position as the child grows.
• Handlebars attached via two clamps and fixed with two 5 mm hex bolts
• Integrated headset bolt allows for easy compression adjustment

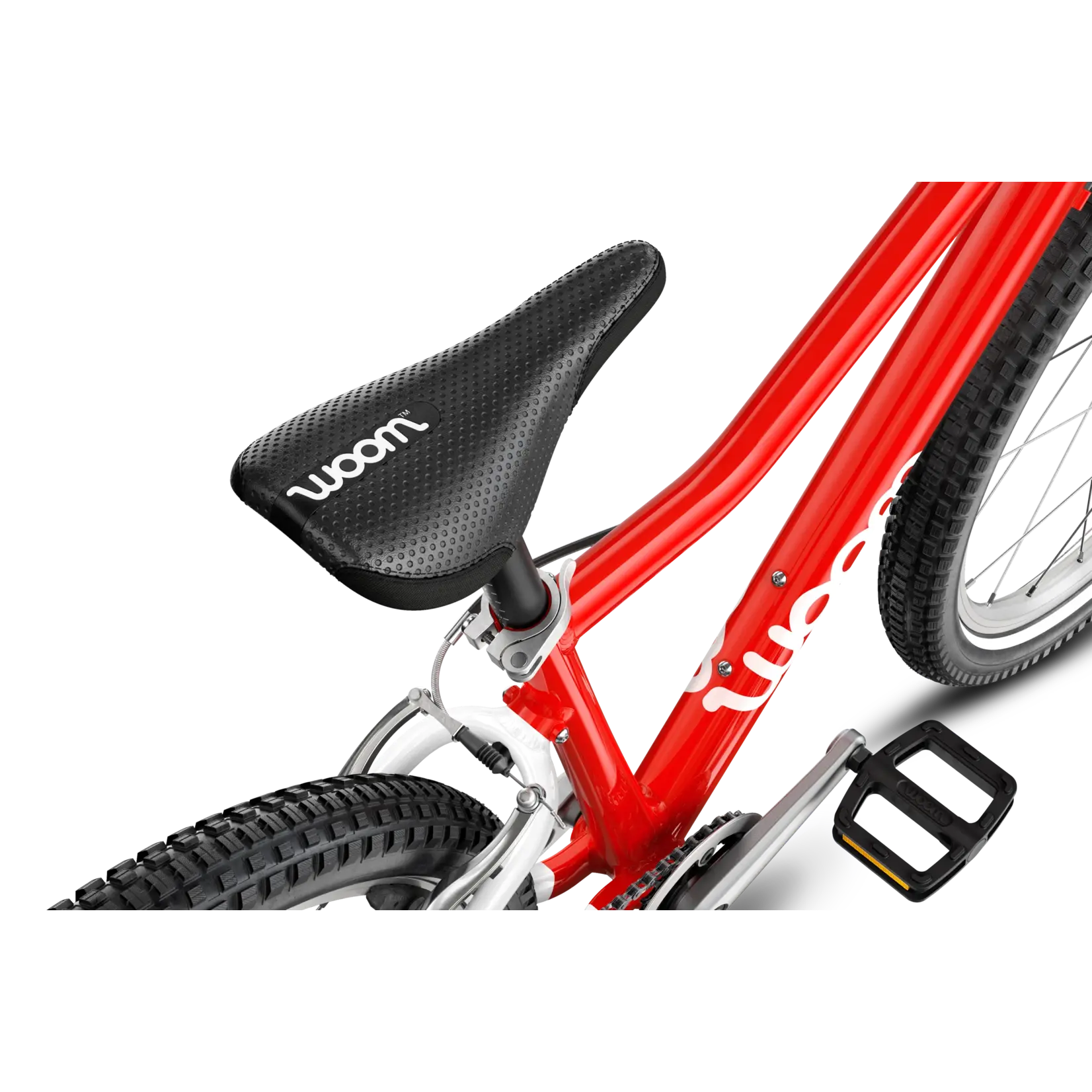

Seat

• Ergonomically designed to fit the anatomy and biomechanics of a young child
• Non-toxic
• Side protection to lean against walls

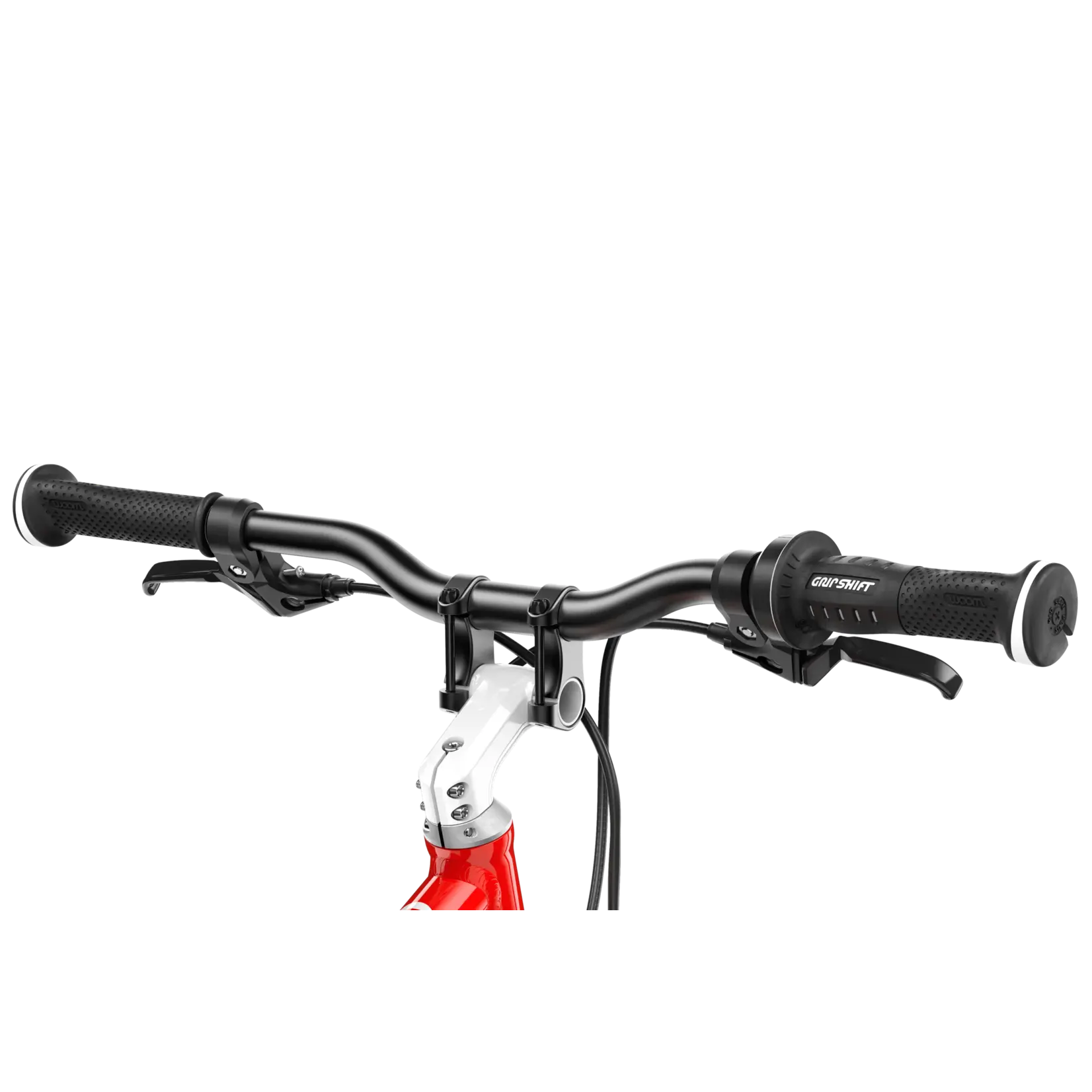

Handlebars

• Wide, ergonomically adapted, light aluminum bars offer more control
• Sandblasted and black anodized
• 19 mm diameter grip, suitable even for very small hands
• Width: 58 cm

Seatpost

• Anodized aluminum
• Minimum insertion point marked, plus integrated guide in seat tube

Grips

• woom Ergogrip – the smallest grip of its kind
• Ergonomically formed gripping surface, non-toxic
• Handlebar ends with extra-large diameter for greater protection
• Screw-in grips ensure secure attachment to handlebars

Seatpost Clamp

• Secure aluminum seatpost clamp eliminates risk of turning/twisting
• Extra-long quick-release skewer, easy to operate requiring minimal strength

Drivetrain

• Lightweight, forged 5.1" (130 mm) aluminum cranks with narrow tread (Q-factor)
• Narrow-wide chainring with 28 teeth
• Cassette with 11-32 teeth
• Narrow, flat platform plastic pedals
• Sealed cartridge

Brake

• Two independently operated mini V-brakes with braking power adapted for children
• Brake levers are ergonomically adapted, reach-adjustable, and suitable for small hands
• High-quality Jagwire cables provide reduced friction and smooth performance

Weight

• 20.3 lbs (9.3 kg)

Weight limit

• 175 lbs (80 kg)

Enclosed tools

• 15 mm wrench for pedals
• 5 mm hex key for hubs, stem, and seatpost clamp
